GEHIUR 12.7U

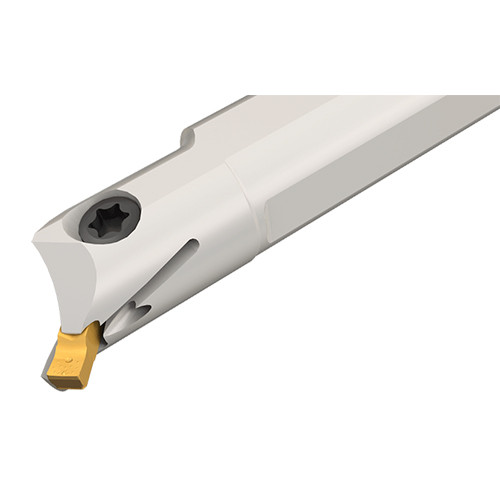

Grooving Toolholder; 1/2″ Shank Dia. to 0.126″ Width × 0.079″ Max Depth × 5″ OAL ; Steel

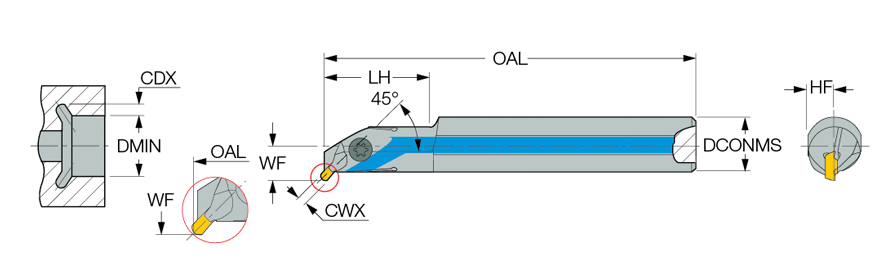

| Cutting Width Maximum (CWX) | 0.126″ | Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Cutting Depth Maximum (CDX) | 0.079″ | Coolant Supply Property (CSP) | Coolant Thru |
| Minimum Bore Diameter (DMIN) | 0.551″ | Application | | Int. Profiling | Int. Undercut & Turning | |
| Functional Width (WF) | 0.34″ | Body Material | Steel |
| Head Length (LH) | 3/4″ | Tool Type | Indexable Turn & Groov Tools |
| Overall Length (OAL) | 5″ | Measurement Type | Inch |
Product Features
| Family Description | Boring bars for undercutting and turning. | Country of Origin | Israel |
| Remarks | For profiling use GEPI (full radius) inserts only, for undercutting use GEPI - UN/UR/UL |
Shipping Info
Package Weight
0.306
