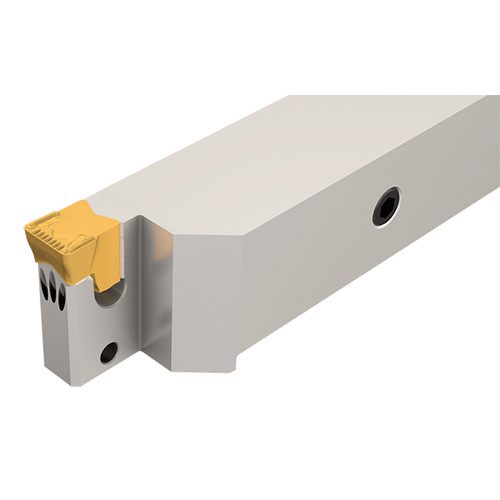

TGBHL 19C-6
Grooving Toolholder; 3/4″ × 3/4″ Shank Size × 0.224″ to 0.256″ Width × 0.472″ Max Depth × 5.3″ OAL ; Steel

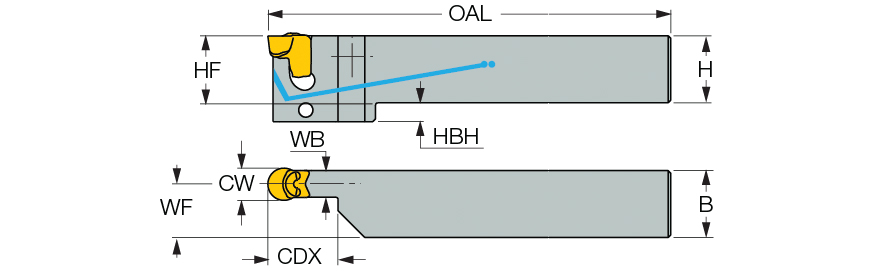

| Cutting Width Minimum (CWN) | 0.224″ | Overall Length (OAL) | 5.3″ |
| Cutting Width Maximum (CWX) | 0.256″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 0.472″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Shank Height (H) | 3/4″ | Body Material | Steel |
| Shank Width (B) | 3/4″ | Tool Type | Parting & Grooving Tools |
| Body Width (WB) | 0.205″ | Measurement Type | Inch |
| Functional Width (WF) | 0.65″ | Head Bottom Offset Height (HBH) | 0.23″ |
Product Features
| Family Description | SUMO-GRIP tools with very rigid clamping. Recommended for grooving, turning and parting at very high feed rates and interrupted cuts. Excellent tool and pocket life. | Country of Origin | Israel |
| Remarks | The tools for the .551 inserts feature a 1/8 port thread for standard tube fittings |
Shipping Info
Package Weight
0.800
