SXCNN 19 P20-05

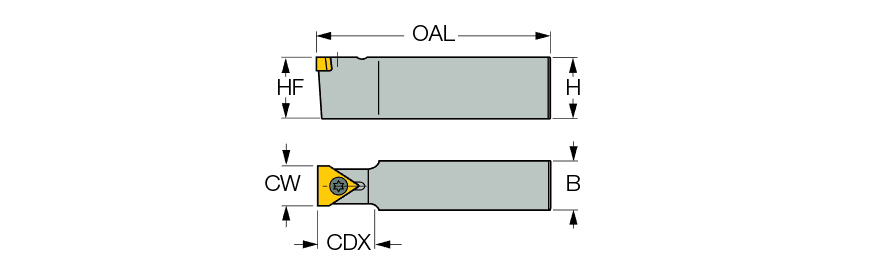

Grooving Toolholder; 3/4″ × 3/4″ Shank Size × 0.95″ Max Depth × 6″ OAL ; Steel
| Cutting Depth Maximum (CDX) | 0.95″ | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 3/4″ | Application | | Ext. Grooving | |
| Shank Width (B) | 3/4″ | Body Material | Steel |
| Body Width (WB) | 0″ | Tool Type | Wide Profiling Tools |
| Overall Length (OAL) | 6″ | Measurement Type | Inch |
Product Features
| Family Description | V-Lock external toolholders for specially tailored wide profile grooving inserts | Country of Origin | Israel |
| Remarks | Toolholder seat needs to be modified according to insert profile to ensure clearance |
Shipping Info
Package Weight
1.001
