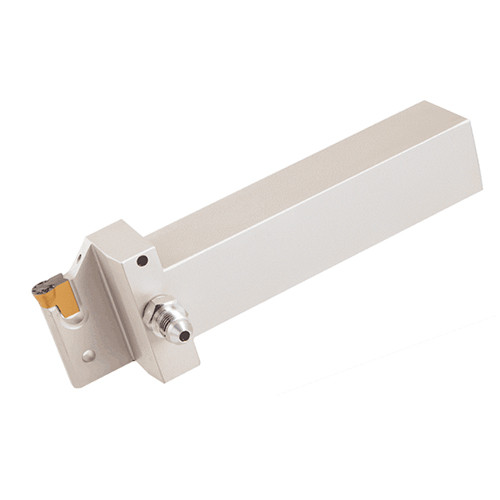

TGBHR 25.4-8-JHP
Grooving Toolholder ; 6″ OAL ; 1″ Shank Height ; 1″ Shank Width ; 0.315″ CW Min. ; 0.315″ CW Max. ; 0.98″ Max Depth ; Steel

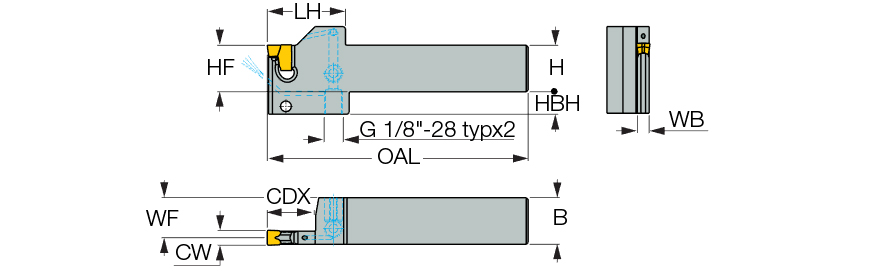

| Cutting Width Minimum (CWN) | 0.315″ | Overall Length (OAL) | 6″ |
| Cutting Width Maximum (CWX) | 0.315″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 0.98″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Shank Height (H) | 1″ | Body Material | Steel |
| Shank Width (B) | 1″ | Tool Type | Parting & Grooving Tools |
| Body Width (WB) | 0.276″ | Measurement Type | Inch |
| Functional Width (WF) | 0.86″ | Head Bottom Offset Height (HBH) | 0.47″ |
| Head Length (LH) | 1.65″ |
Product Features
| Family Description | SUMO-GRIP tools with channels for high-pressure coolant and very rigid clamping. Recommended for grooving, turning and parting at very high feed rates and interrupted cuts. Excellent tool and pocket life. | Country of Origin | Israel |
| Remarks | For user guide, click on More Info |
Shipping Info
Package Weight
2.328
