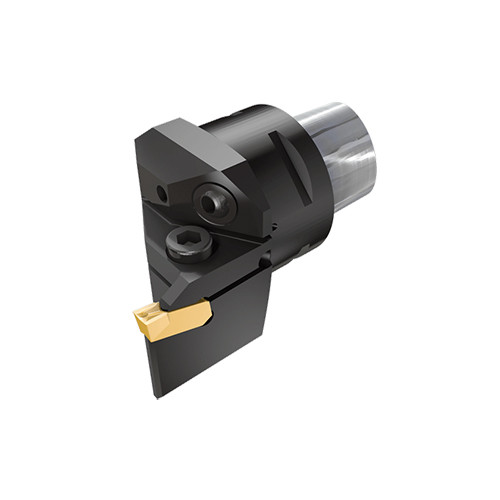

C5 GHDR-5
Grooving Toolholder ; 3.346″ OAL ; 1.968″ Shank Dia. ; 0.197″ CW Min. ; 0.252″ CW Max. ; 0.472″ Max Depth ; Steel

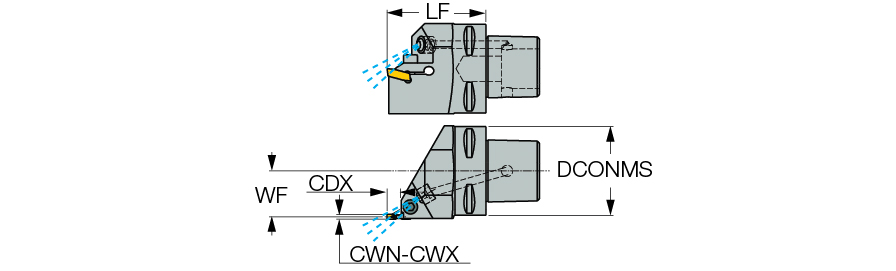

| Cutting Width Minimum (CWN) | 0.197″ | Connection Diameter Machine Side (DCONMS) | 1.968″ |
| Cutting Width Maximum (CWX) | 0.252″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 0.472″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Pulley V Grooving | Threading (Ext.) Groove Turn T | |
| Body Width (WB) | 0.169″ | Body Material | Steel |
| Functional Width (WF) | 0.945″ | Tool Type | Parting & Grooving Tools |
| Overall Length (OAL) | 3.346″ | Measurement Type | Inch |
Product Features
| Family Description | External grooving turning and parting toolholders, with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks. | Country of Origin | Israel |

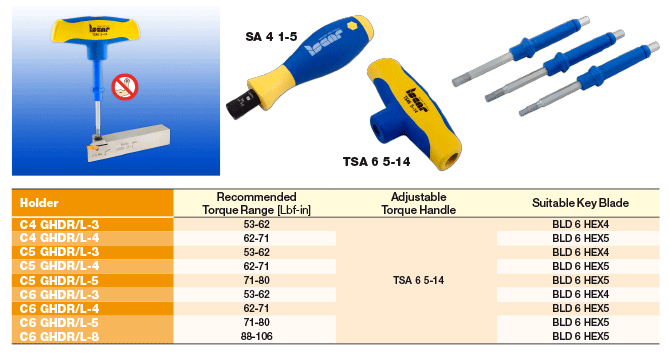

| Remarks | When using GPV and TIP inserts, toolholder tip must be modified according to insert profile to ensure clearance When using GIVR/L inserts, tool holder's seat needs to be modified To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
1.726
