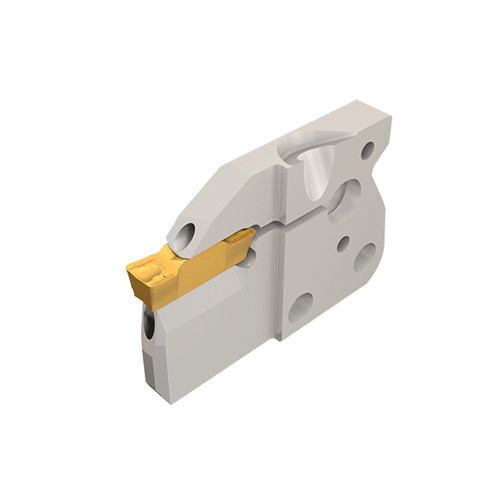

HGPAD 3R-T20-JHP
Grooving Toolholder ; 1.799″ OAL ; 0.118″ CW Min. ; 0.126″ CW Max. ; 0.787″ Max Depth ; Steel

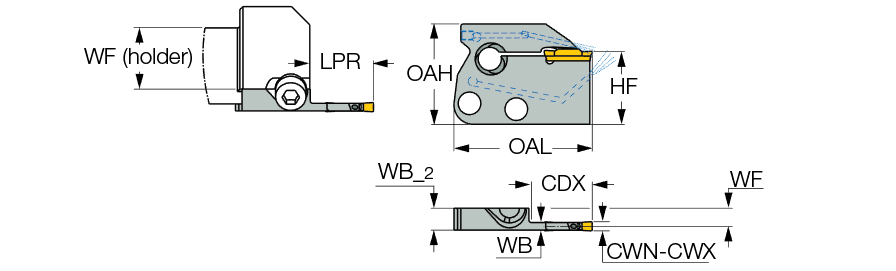

| Cutting Width Minimum (CWN) | 0.118″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Width Maximum (CWX) | 0.126″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Cutting Depth Maximum (CDX) | 0.787″ | Body Material | Steel |
| Body Width (WB) | 0.283″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 0.234″ | Measurement Type | Inch |
| Overall Length (OAL) | 1.799″ |
Product Features
| Family Description | MODULAR-GRIP adapters with high-pressure coolant channels carrying turning, grooving and parting inserts. | Country of Origin | Israel |
Shipping Info
Package Length
1.79600
Package Width
1.31500
Package Height
.28300
Package Weight
0.105
Related Documentation
SR14-519-supplied screw in the attached plastic bag for GAD, GAM, DGAD, HGAD and PCADR/L adapters. SR M6X20-XT-supplied screws with the tools in the plastic bag for CGPAD, HGPAD, TGPAD and FGPAD adapters. Sealing Screw used to prevent chips from entering the upper locking screw hole of adapter above.
