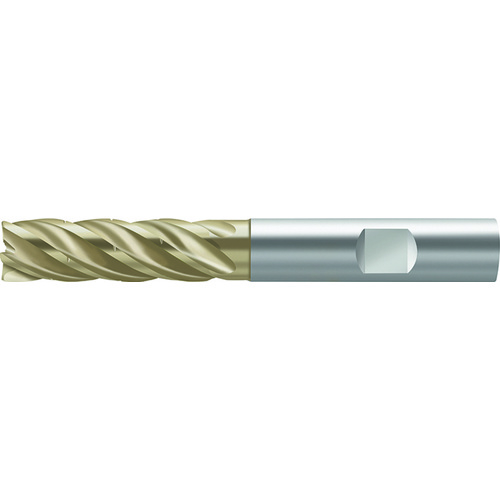

MD133.12.7W5L076D-WJ30RD
SQ End Mill; 1/2″ Dia. × 1-3/4″ LOC × 1/2″ Shank Dia. × 4″ OAL ; 0.03″ RE ; 5 FL ; 2″ LBS ; Carbide ; AlTiCrN ; Series MD133
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 1/2″ | Applicable Material | | Steel | Cast Iron | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Grade | WJ30RD |
| Depth of Cut Maximum (APMX) | 1-3/4″ | Tool Type | Corner Radius |
| Overall Length (OAL) | 4″ | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Shank Standard | DIN 6535 HB |
| Coating | AlTiCrN | Body Material | Carbide |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.5″ |
| Flute Helix Angle (FHA) | 35 Degrees | Measurement Type | Inch |
| Shank Type | Weldon | Series/List # | MD133 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Usable Length (LU) | 2″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.3
