GHDL 25-P8
Grooving Toolholder ; 150 mm OAL ; 25 mm Shank Height ; 25 mm Shank Width ; 7 mm CW Min. ; 10 mm CW Max. ; 16.5 mm Max Depth ; Steel

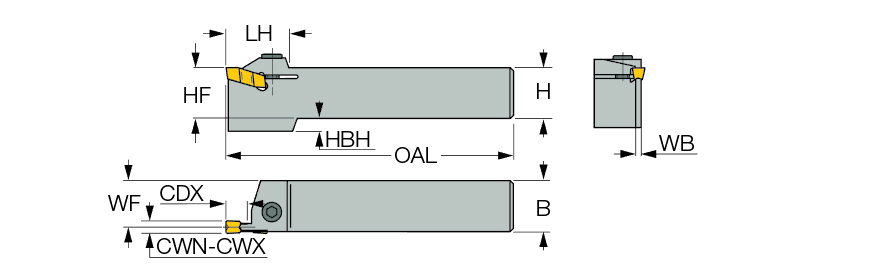

| Cutting Width Minimum (CWN) | 7 mm | Head Length (LH) | 35.7 mm |
| Cutting Width Maximum (CWX) | 10 mm | Overall Length (OAL) | 150 mm |
| Cutting Depth Maximum (CDX) | 16.5 mm | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 25 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Pulley V Grooving | Threading (Ext.) Groove Turn T | |
| Shank Width (B) | 25 mm | Body Material | Steel |
| Body Width (WB) | 6.5 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 21.8 mm | Measurement Type | Metric |
Product Features
| Family Description | External tools for turning, grooving and parting. | Country of Origin | Israel |

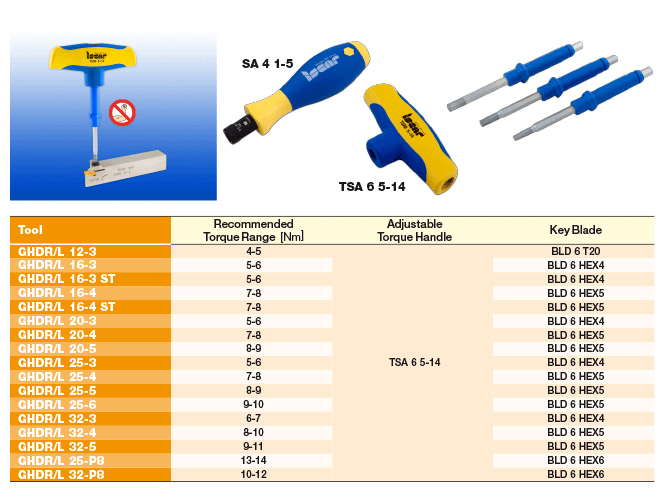

| Remarks | For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance. When using GIVR/L inserts, tool holder's seat needs to be modified To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
1.667
