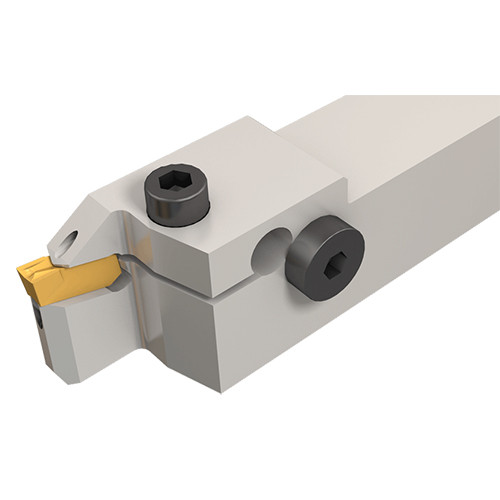

GHDL 20-3-JHP
Grooving Toolholder ; 120 mm OAL ; 20 mm Shank Height ; 20 mm Shank Width ; 2.8 mm CW Min. ; 4 mm CW Max. ; 9 mm Max Depth ; Steel

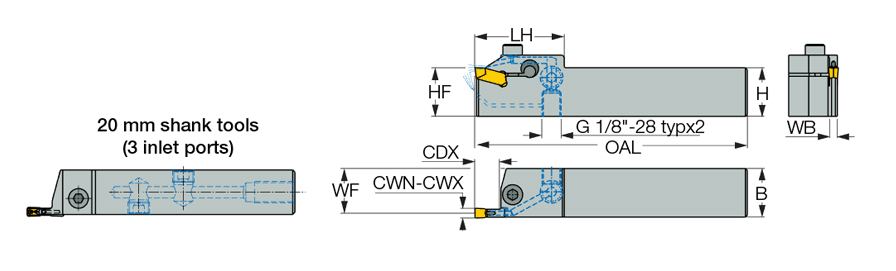

| Cutting Width Minimum (CWN) | 2.8 mm | Head Length (LH) | 29 mm |
| Cutting Width Maximum (CWX) | 4 mm | Overall Length (OAL) | 120 mm |
| Cutting Depth Maximum (CDX) | 9 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Height (H) | 20 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Pulley V Grooving | Threading (Ext.) Groove Turn T | |
| Shank Width (B) | 20 mm | Body Material | Steel |
| Body Width (WB) | 2.4 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 18.8 mm | Measurement Type | Metric |
Product Features
| Family Description | Grooving and turning CUT-GRIP tools with channels for high-pressure coolant. | Country of Origin | Israel |

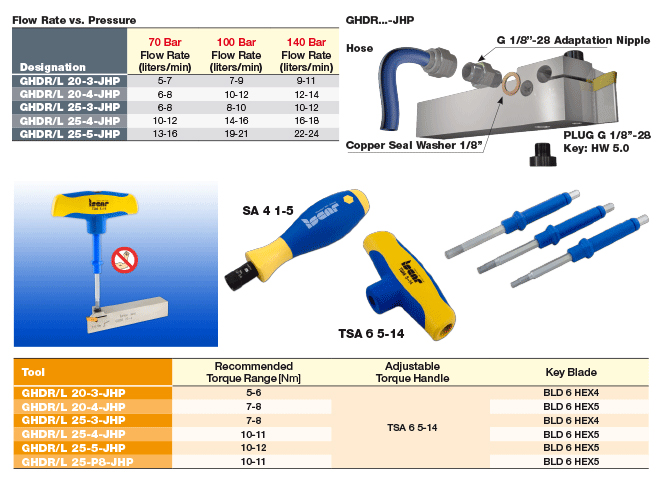

| Remarks | For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance When using GIVR/L inserts, tool holder's seat needs to be modified For more details click on More Info To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
0.866
