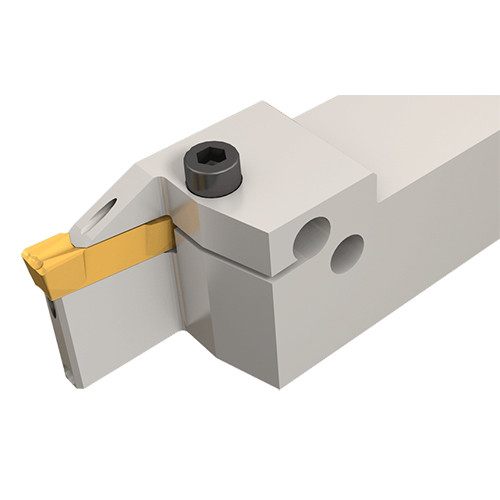

GHDL 32-8-JHP
Grooving Toolholder ; 170 mm OAL ; 32 mm Shank Height ; 32 mm Shank Width ; 6.6 mm CW Min. ; 8.3 mm CW Max. ; 25 mm Max Depth ; Steel

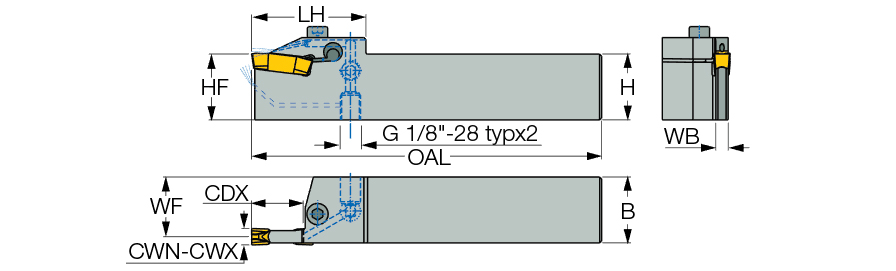

| Cutting Width Minimum (CWN) | 6.6 mm | Head Length (LH) | 55.5 mm |
| Cutting Width Maximum (CWX) | 8.3 mm | Overall Length (OAL) | 170 mm |

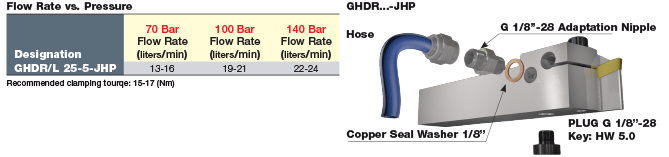

| Cutting Depth Maximum (CDX) | 25 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Height (H) | 32 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Shank Width (B) | 32 mm | Body Material | Steel |
| Body Width (WB) | 6 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 29 mm | Measurement Type | Metric |
Product Features
| Family Description | CUT-GRIP tools with channels for high-pressure coolant for grooving and turning. | Country of Origin | Israel |
| Remarks | For more details click on More Info To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
2.787
