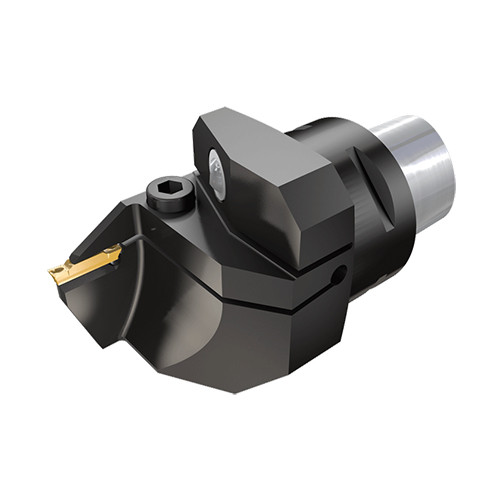

C6 HELIL 6T30
Grooving Toolholder ; 4.843″ OAL ; 2.48″ Shank Dia. ; 0.236″ CW Min. ; 1/4″ CW Max. ; Steel

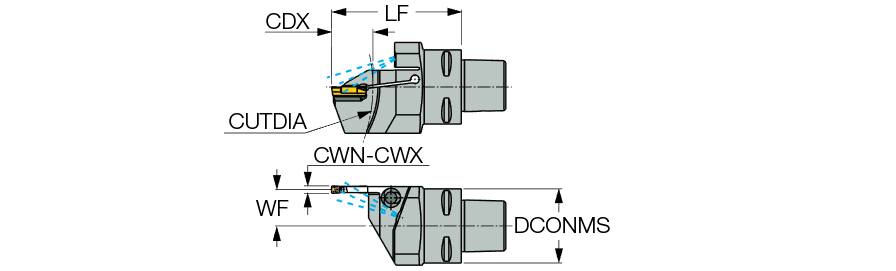

| Cutting Width Minimum (CWN) | 0.236″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Width Maximum (CWX) | 1/4″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Body Width (WB) | 0.205″ | Body Material | Steel |
| Functional Width (WF) | 1.197″ | Tool Type | Parting & Grooving Tools |
| Overall Length (OAL) | 4.843″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 2.48″ |
Product Features
| Family Description | HELI-GRIP external grooving turning and parting tools with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks. | Country of Origin | Israel |

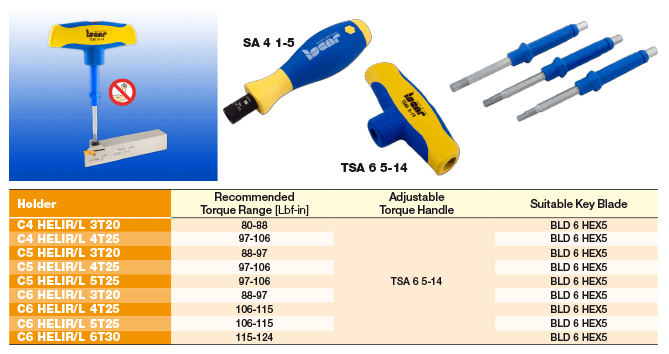

| Remarks | The depth of cut (CDX) for grooving is limited by the part diameter Dmax, for grooving depth capacity, click on More Info To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
2.996
