GHDR 25.4-8A
Grooving Toolholder ; 6″ OAL ; 1″ Shank Height ; 1″ Shank Width ; 0.315″ CW Min. ; 0.315″ CW Max. ; 1″ Max Depth ; Steel

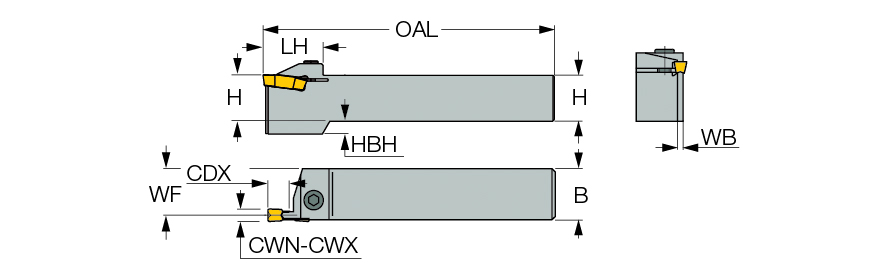

| Cutting Width Minimum (CWN) | 0.315″ | Overall Length (OAL) | 6″ |
| Cutting Width Maximum (CWX) | 0.315″ | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 1″ | Application | | Ext. Turning Aluminum Wheels | |
| Shank Height (H) | 1″ | Body Material | Steel |
| Shank Width (B) | 1″ | Tool Type | Parting & Grooving Tools |
| Body Width (WB) | 0.232″ | Measurement Type | Inch |
| Functional Width (WF) | 0.884″ | Head Bottom Offset Height (HBH) | 0.3″ |
| Head Length (LH) | 1.6″ |
Product Features
| Family Description | External tools for turning, grooving and parting; upper jaw with hard coating to sustain chip deflection | Country of Origin | Israel |

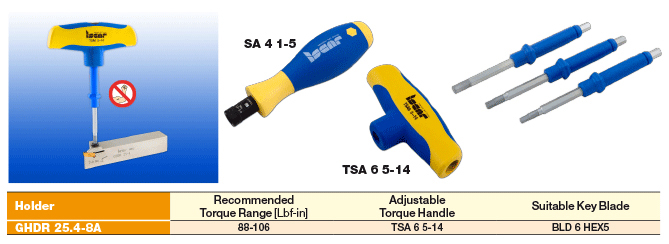

| Remarks | Upper jaw with hard coating to sustain chip deflection To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
1.678
