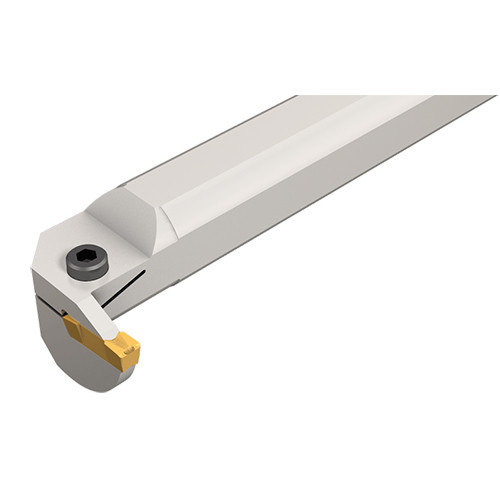

GHIL38.1-815
Grooving Toolholder ; 12″ OAL ; 1-1/2″ Shank Dia. ; 0.315″ CW Min. ; 0.315″ CW Max. ; 0.59″ Max Depth ; Steel

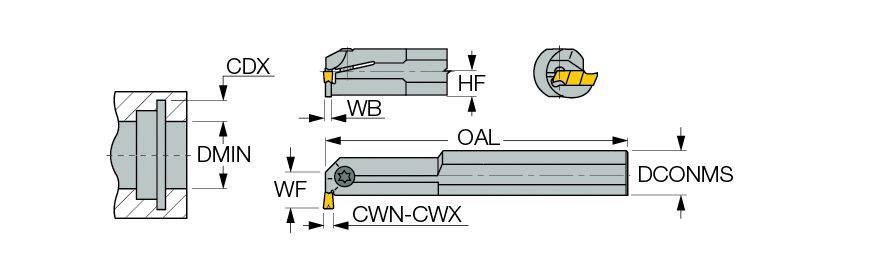

| Cutting Width Minimum (CWN) | 0.315″ | Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Cutting Width Maximum (CWX) | 0.315″ | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 0.59″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | |
| Minimum Bore Diameter (DMIN) | 2-1/2″ | Body Material | Steel |
| Functional Width (WF) | 1.39″ | Tool Type | Indexable Turn & Groov Tools |
| Overall Length (OAL) | 12″ | Measurement Type | Inch |
Product Features
| Family Description | Grooving and turning boring bars | Country of Origin | Israel |
Shipping Info
Package Weight
24.296
