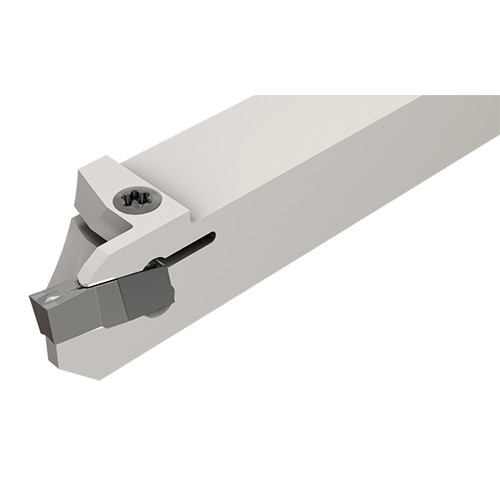

GHSR 12.7-2
Grooving Toolholder ; 4.72″ OAL ; 1/2″ Shank Height ; 1/2″ Shank Width ; 0.087″ CW Min. ; 0.124″ CW Max. ; Steel

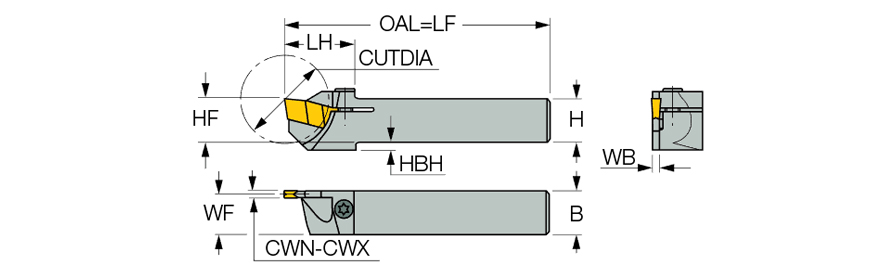

| Cutting Width Minimum (CWN) | 0.087″ | Overall Length (OAL) | 4.72″ |
| Cutting Width Maximum (CWX) | 0.124″ | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 1/2″ | Application | | Ext. Back Turning | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Threading (Ext.) Groove Turn T | |
| Shank Width (B) | 1/2″ | Body Material | Steel |
| Body Width (WB) | 0.071″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 0.464″ | Measurement Type | Inch |
| Head Length (LH) | 0.76″ | Head Bottom Offset Height (HBH) | 0.08″ |
Product Features
| Family Description | External grooving and turning holders for Swiss-type and automatic machines | Country of Origin | Israel |

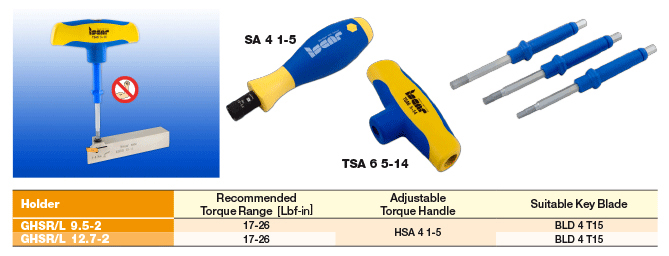

| Remarks | When using GIVR/L inserts, tool holder's seat needs to be modified To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
0.352
Related Documentation
Wide range of integral shank holders for multi-directional operations. Wide range of inserts applicable. GIM for grooving and parting, GIP-E for turning, GIP for precision grooving and GIP-MT/WT for threading.
