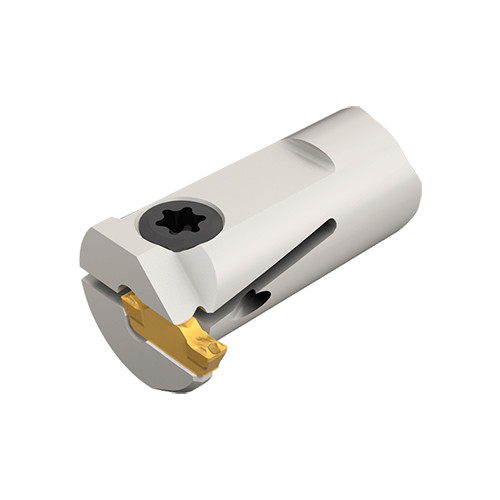

E12 GEHIR 16-3
Grooving Toolholder; x 0.079″ Shank Size × 0.094″ to 0.118″ Width × 6.85″ OAL

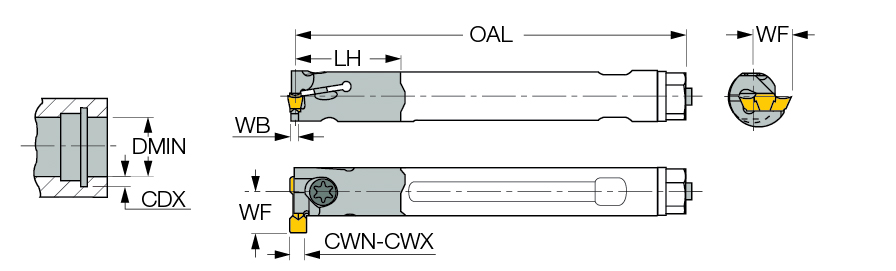

| Cutting Width Minimum (CWN) | 2.4 mm | Overall Length (OAL) | 174 mm |
| Cutting Width Maximum (CWX) | 3 mm | Connection Diameter Machine Side (DCONMS) | 12 mm |
| Cutting Depth Maximum (CDX) | 2.2 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Body Width (WB) | 2 mm | Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Minimum Bore Diameter (DMIN) | 16 mm | Body Material | Steel |
| Functional Width (WF) | 9 mm | Tool Type | Indexable Turn & Groov Tools |
| Head Length (LH) | 21 mm | Measurement Type | Metric |
Product Features
| Family Description | Interchangeable heads for internal grooving and turning. Used on a solid carbide shank. Using GEMI and GEPI inserts in larger than 1.9 mm widths. | Country of Origin | Israel |
| Remarks | Left-hand heads on request The shank assembly is the same for right- and left-hand heads |
Shipping Info
Package Weight
0.079
