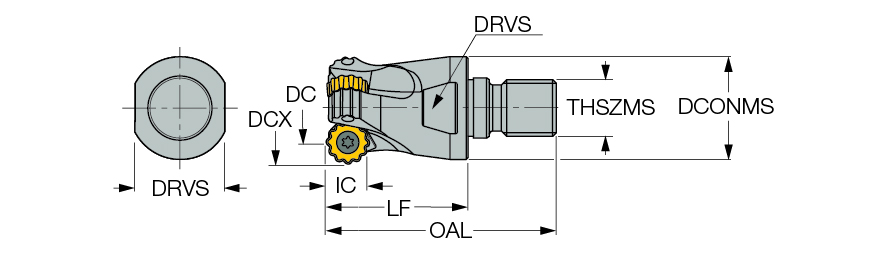

ERW D020A032-3-M16-12
Indexable End Mill; 0.787″ Dia. × 0.236″ LOC × 1.142″ Shank Dia. × 2.559″ OAL
| Cutting Diameter (DC/DCX) | 0.787″ | Tool Type | Round corner cutters |
| Cutting Diameter (DC) | 0.787″ | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Cutting Item Count (CICT) | 3 | Drive Size (DRVS) | 0.984″ |
| Depth of Cut Maximum (APMX) | 0.236″ | Body Diameter (BD) | 0″ |
| Overall Length (OAL) | 2.559″ | Corner Radius (RE) | 0.2362″ |
| Ramping Angle Maximum (RMPX) | 7 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1.142″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | RCCT 1206MO | Body Material | Steel |
| Weight of Item (WT) | 0.34 Lbs | Connection Code Machine Side (CCMS) | FLEXFIT |
| Functional Length (LF) | 1.575″ | Cutting Diameter Maximum (DCX) | 1.26″ |
Product Features
| Family Description | MILLSHRED - Endmills with FLEXFIT threaded adaptation carrying round inserts with serrated cutting edges or regular round inserts. Used for rough machining applications on small dies and low power machines. | Country of Origin | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. For adaptation, click on More Info |
Shipping Info
Package Weight
0.505
