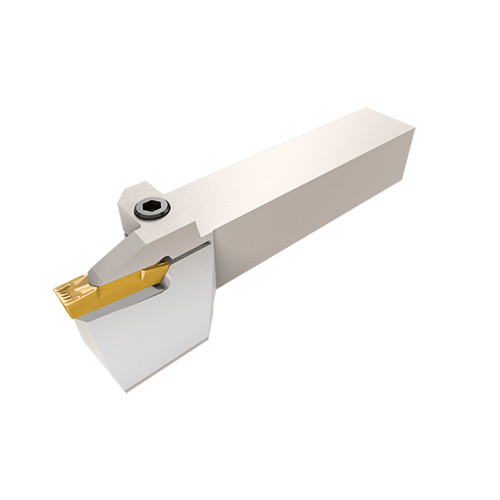

GHFG 25-63L-8
Grooving Toolholder; 25 mm × 25 mm Shank Size × 25 mm Max Depth × 150 mm OAL ; Steel

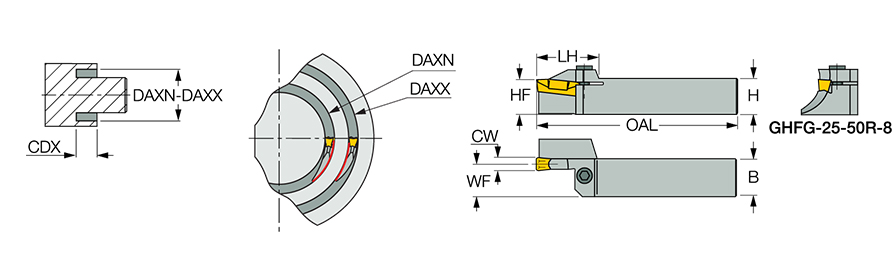

| Cutting Depth Maximum (CDX) | 25 mm | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 25 mm | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Shank Width (B) | 25 mm | Axial Groove Outside Diameter Minimum (DAXN) | 63 mm |
| Body Width (WB) | 7 mm | Axial Groove Outside Diameter Maximum (DAXX) | 82 mm |
| Functional Width (WF) | 22 mm | Body Material | Steel |
| Head Length (LH) | 41 mm | Tool Type | Face Turning & grooving Tools |
| Overall Length (OAL) | 150 mm | Measurement Type | Metric |
Product Features
| Family Description | Holders for face grooving and turning Dmin. 50 mm. Can machine along shafts. | Country of Origin | Israel |
| Remarks | For insert clamping instructions, click on More Info. |
Shipping Info
Package Weight
1.607
Related Documentation

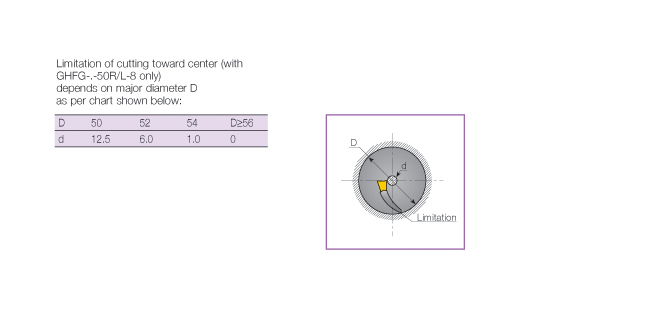

GHFG integral toolholders for face grooving and turning in both directions. Initial grooving of major diameter ranges 50 to 80 mm with holders GHFG, inserts GIFG-8. 80 to 250 mm with GHFGR/L and GIF-8. Grooving depths up to 25 mm.
