GHDR 40-10
Grooving Toolholder ; 200 mm OAL ; 40 mm Shank Height ; 40 mm Shank Width ; 8.6 mm CW Min. ; 11.1 mm CW Max. ; 25 mm Max Depth ; Steel

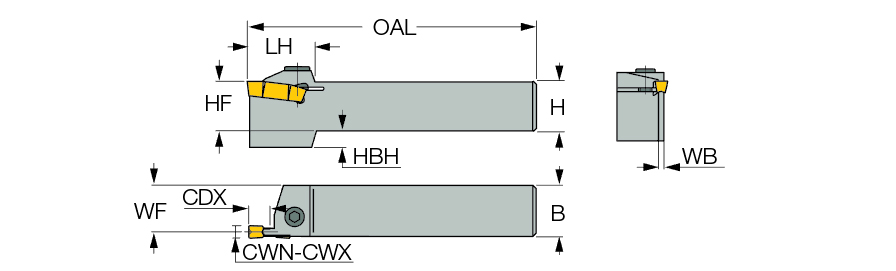

| Cutting Width Minimum (CWN) | 8.6 mm | Head Length (LH) | 43 mm |
| Cutting Width Maximum (CWX) | 11.1 mm | Overall Length (OAL) | 200 mm |
| Cutting Depth Maximum (CDX) | 25 mm | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 40 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Shank Width (B) | 40 mm | Body Material | Steel |
| Body Width (WB) | 7.4 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 36.3 mm | Measurement Type | Metric |
Product Features
| Family Description | External tools for turning, grooving and parting. | Country of Origin | Israel |

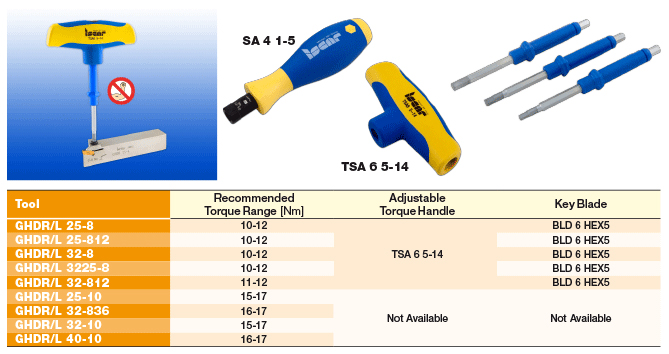

| Remarks | To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
5.205
