PHGL 25-2.4
Grooving Toolholder ; 140 mm OAL ; 25 mm Shank Height ; 25 mm Shank Width ; 2.4 mm CW Min. ; 3.18 mm CW Max. ; 17 mm Max Depth ; Steel

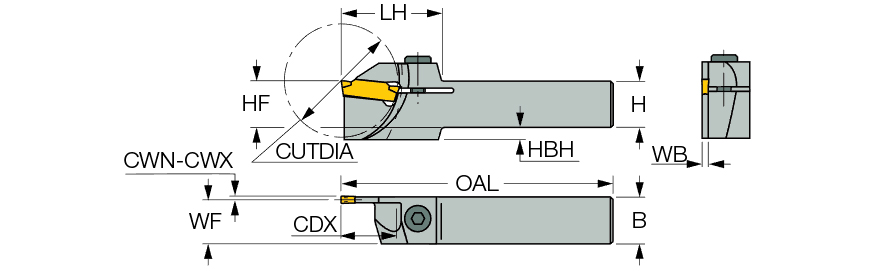

| Cutting Width Minimum (CWN) | 2.4 mm | Head Length (LH) | 33 mm |
| Cutting Width Maximum (CWX) | 3.18 mm | Overall Length (OAL) | 140 mm |
| Cutting Depth Maximum (CDX) | 17 mm | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 25 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | |
| Shank Width (B) | 25 mm | Body Material | Steel |
| Body Width (WB) | 1.9 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 24.1 mm | Measurement Type | Metric |
Product Features
| Family Description | Holders for external deep grooving and turning, up to 17 mm. | Country of Origin | Israel |
Shipping Info
Package Weight
1.444
