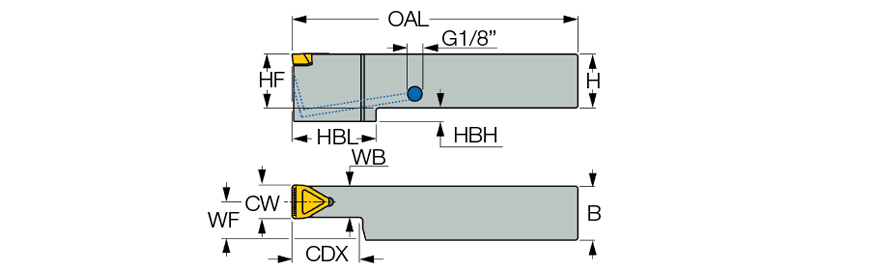

| Cutting Depth Maximum (CDX) | 20 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Height (H) | 25 mm | Application | | Ext. Grooving | |
| Shank Width (B) | 25 mm | Body Material | Steel |
| Body Width (WB) | 13 mm | Tool Type | Wide Profiling Tools |
| Functional Width (WF) | 18.5 mm | Measurement Type | Metric |
| Head Length (LH) | 30 mm | Head Bottom Offset Height (HBH) | 8 mm |
| Overall Length (OAL) | 170 mm |
Product Features
| Family Description | External holders for wide grooving inserts | Country of Origin | Israel |
| Remarks | For grooving only |
Shipping Info
Package Weight
2.015
