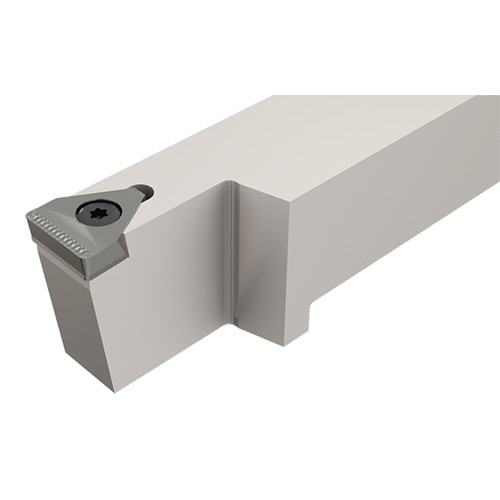

THDR 3232-17T38
Grooving Toolholder; 32 mm × 32 mm Shank Size × 38 mm Max Depth × 170 mm OAL ; Steel

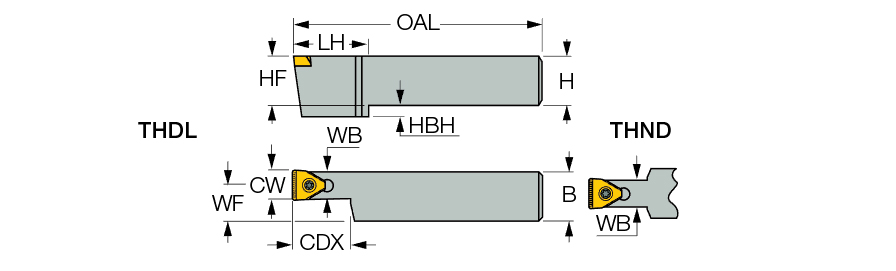

| Cutting Depth Maximum (CDX) | 38 mm | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 32 mm | Application | | Ext. Grooving | |
| Shank Width (B) | 32 mm | Body Material | Steel |
| Body Width (WB) | 16 mm | Tool Type | Wide Profiling Tools |
| Functional Width (WF) | 24 mm | Measurement Type | Metric |
| Head Length (LH) | 50 mm | Head Bottom Offset Height (HBH) | 8 mm |
| Overall Length (OAL) | 170 mm |
Product Features
| Family Description | External holders for wide (20 mm) grooving inserts | Country of Origin | Israel |
Shipping Info
Package Weight
3.031
