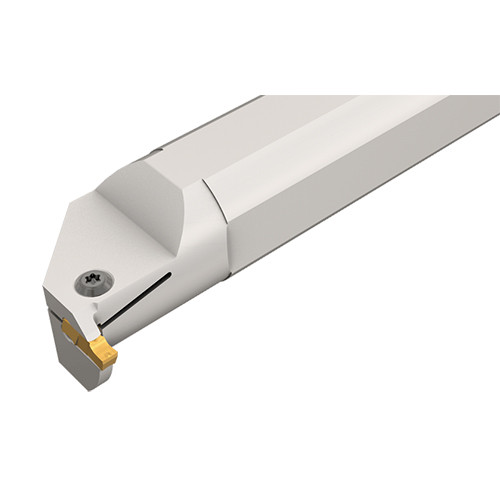

GHIR 25.4-4
Grooving Toolholder ; 8″ OAL ; 1″ Shank Dia. ; 0.098″ CW Min. ; 0.157″ CW Max. ; 0.197″ Max Depth ; Steel
| Cutting Width Minimum (CWN) | 0.098″ | Overall Length (OAL) | 8″ |
| Cutting Width Maximum (CWX) | 0.157″ | Connection Diameter Machine Side (DCONMS) | 1″ |
| Cutting Depth Maximum (CDX) | 0.197″ | Coolant Supply Property (CSP) | External |
| Body Width (WB) | 0.085″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Minimum Bore Diameter (DMIN) | 0.984″ | Body Material | Steel |
| Functional Width (WF) | 0.69″ | Tool Type | Indexable Turn & Groov Tools |
| Head Length (LH) | 2″ | Measurement Type | Inch |
Product Features

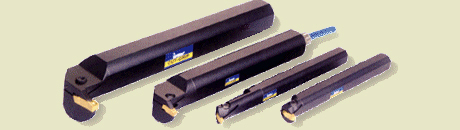

| Family Description | Grooving and turning boring bars. | Country of Origin | Israel |
| Remarks | When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance |
Shipping Info
Package Length
8.50000
Package Width
1.55000
Package Height
1.55000
Package Weight
1.671
