SXCIR31.7-24

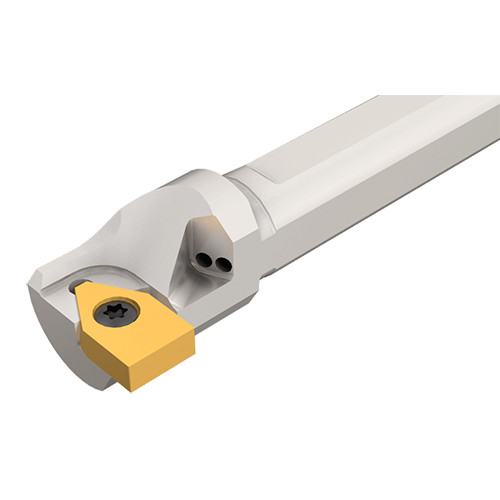

Grooving Toolholder; 1-1/4″ Shank Dia. × 0.157″ Max Depth × 8″ OAL ; Steel

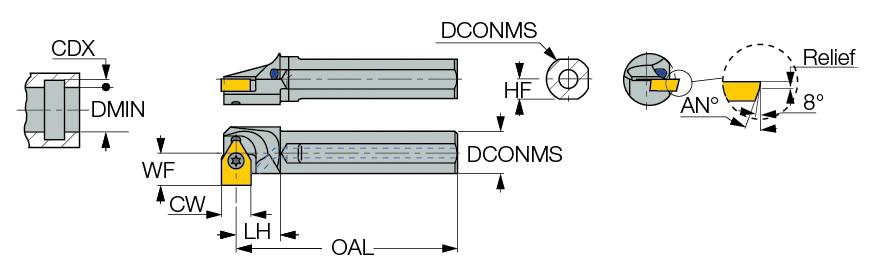

| Cutting Depth Maximum (CDX) | 0.157″ | Coolant Supply Property (CSP) | Coolant Thru |
| Minimum Bore Diameter (DMIN) | 1.57″ | Application | | Int. Grooving | Int. Grooving (side limit) | |
| Functional Width (WF) | 0.81″ | Body Material | Steel |
| Head Length (LH) | 1.4″ | Tool Type | Wide Profiling Tools |
| Overall Length (OAL) | 8″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
Product Features
| Family Description | Internal toolholders for specially tailored profile insets. | Country of Origin | Israel |
Shipping Info
Package Weight
2.614
