DGTL 19-2
Grooving Toolholder ; 4-1/2″ OAL ; 3/4″ Shank Height ; 3/4″ Shank Width ; 0.075″ CW Min. ; 0.1″ CW Max. ; Steel

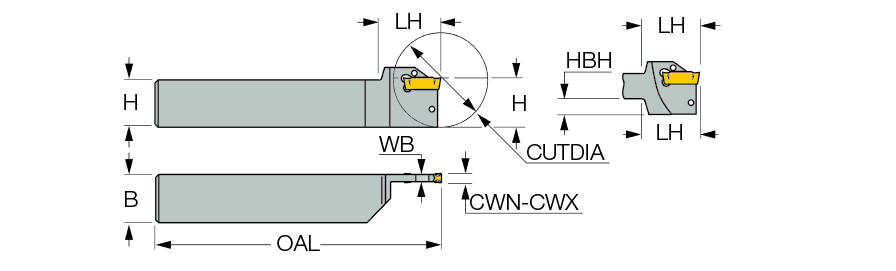

| Cutting Width Minimum (CWN) | 0.075″ | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 0.1″ | Application | | Ext. Grooving | Parting | |
| Shank Height (H) | 3/4″ | Body Material | Steel |
| Shank Width (B) | 3/4″ | Tool Type | Parting & Grooving Tools |
| Body Width (WB) | 0.071″ | Measurement Type | Inch |
| Head Length (LH) | 1.1″ | Head Bottom Offset Height (HBH) | 0.14″ |
| Overall Length (OAL) | 4-1/2″ |
Product Features
| Family Description | Integral shank parting and grooving tools | Country of Origin | Israel |
| Remarks | Insert limit is Tmax=.709. If deeper penetration is required, the insert should be modified into single-ended by the user DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified-click on More Info |
Shipping Info
Package Length
5.00000
Package Width
3.00000
Package Height
3.00000
Package Weight
0.617
