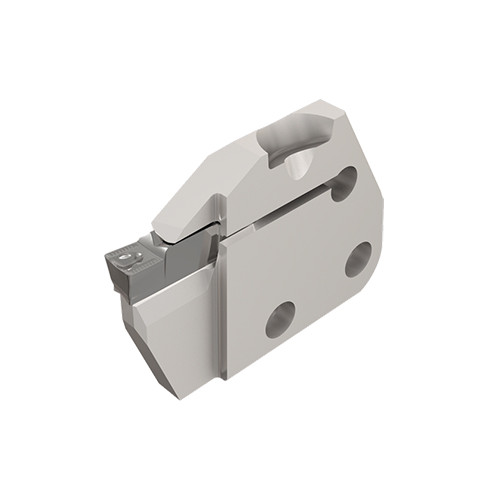

HGPAD 3L-T12
Grooving Toolholder ; 1.563″ OAL ; 0.118″ CW Min. ; 0.126″ CW Max. ; 0.472″ Max Depth ; Steel

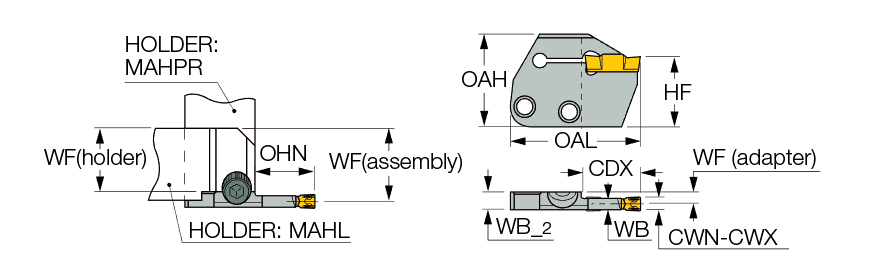

| Cutting Width Minimum (CWN) | 0.118″ | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 0.126″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Cutting Depth Maximum (CDX) | 0.472″ | Body Material | Steel |
| Body Width (WB) | 0.236″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 0.189″ | Measurement Type | Inch |
| Overall Length (OAL) | 1.563″ |
Product Features
| Family Description | Adapters for turning, grooving and parting carrying HELI-GRIP inserts. | Country of Origin | Israel |
| Remarks | DO-GRIP DGN, HGN inserts can be used for grooving only. |
Shipping Info
Package Weight
0.088
