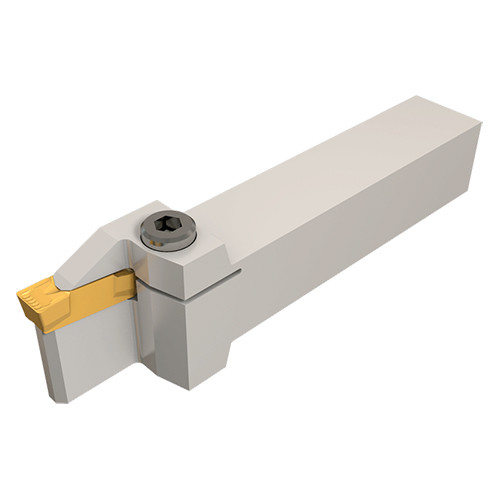

GHDL 38.1-836
Grooving Toolholder ; 8″ OAL ; 1-1/2″ Shank Height ; 1-1/2″ Shank Width ; 0.275″ CW Min. ; 0.327″ CW Max. ; 1.44″ Max Depth ; Steel

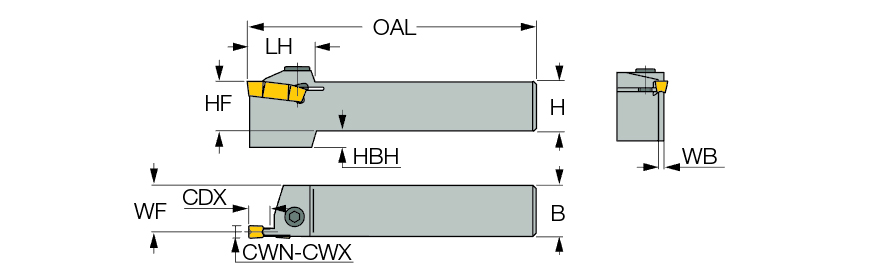

| Cutting Width Minimum (CWN) | 0.275″ | Head Length (LH) | 2.2″ |
| Cutting Width Maximum (CWX) | 0.327″ | Overall Length (OAL) | 8″ |
| Cutting Depth Maximum (CDX) | 1.44″ | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 1-1/2″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Shank Width (B) | 1-1/2″ | Body Material | Steel |
| Body Width (WB) | 0.248″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 1.38″ | Measurement Type | Inch |
Product Features
| Family Description | External tools for turning, grooving and parting. | Country of Origin | Israel |

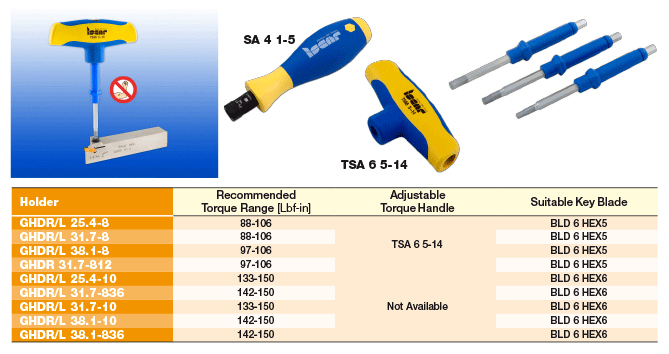

| Remarks | To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
4.553
