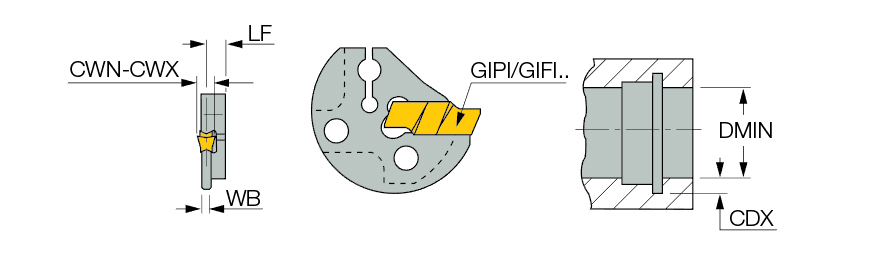

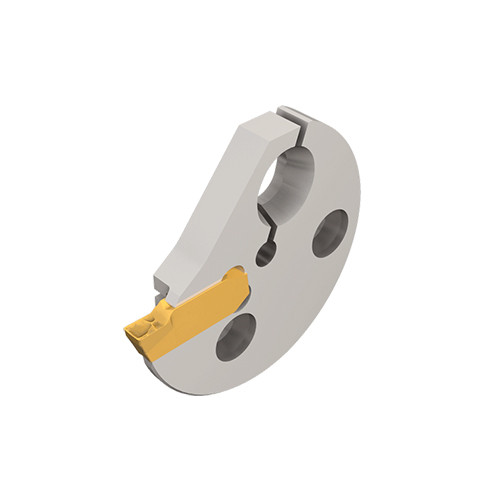

GAIR 40-5
Grooving Toolholder ; 0.177″ CW Min. ; 0.252″ CW Max. ; 0.276″ Max Depth ; Steel
| Cutting Width Minimum (CWN) | 0.177″ | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 0.252″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Cutting Depth Maximum (CDX) | 0.276″ | Body Material | Steel |
| Body Width (WB) | 0.157″ | Tool Type | Indexable Turn & Groov Tools |
| Minimum Bore Diameter (DMIN) | 1.575″ | Measurement Type | Inch |
| Functional Width (WF) | 0.205″ |
Product Features
| Family Description | Internal grooving and turning adapters for GIPI, GIFI and GIMIY inserts. | Country of Origin | Israel |
| Remarks | When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance |
Shipping Info
Package Weight
0.084
