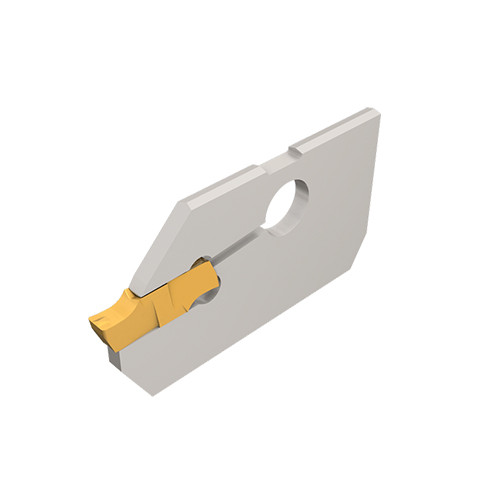

CGIN 26K-3
Grooving Toolholder ; 1.024″ Shank Height ; 0.11″ CW Min. ; 0.157″ CW Max. ; Steel
| Cutting Width Minimum (CWN) | 0.11″ | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 0.157″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | Threading (Int.) | |
| Shank Height (H) | 1.024″ | Body Material | Steel |
| Body Width (WB) | 0.094″ | Tool Type | Blades and adapters for Parting & Grooving |
| Minimum Bore Diameter (DMIN) | 1.968″ | Measurement Type | Inch |
Product Features
| Family Description | Internal, single-ended blades, for grooving and turning. | Country of Origin | Israel |

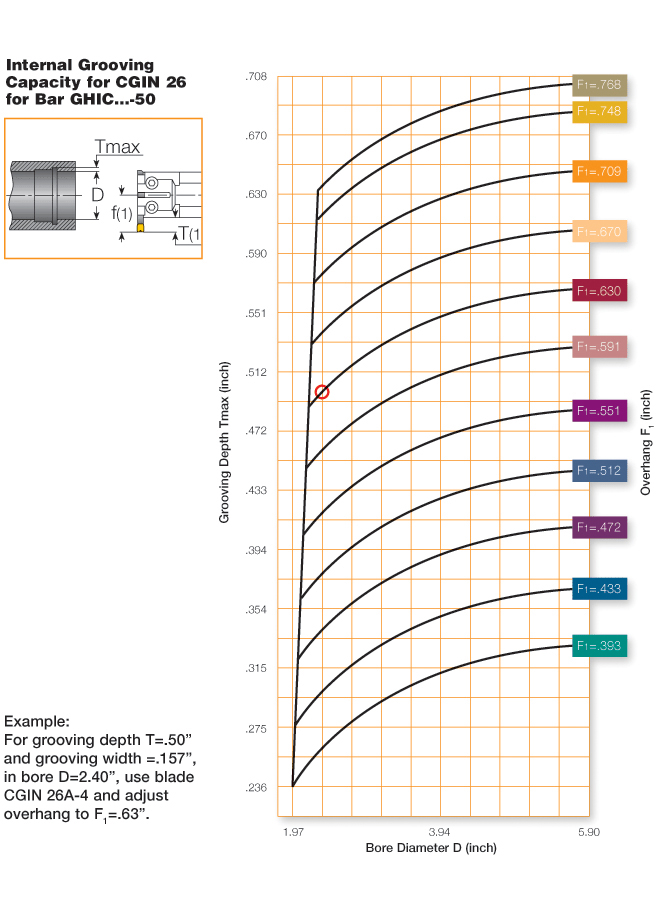

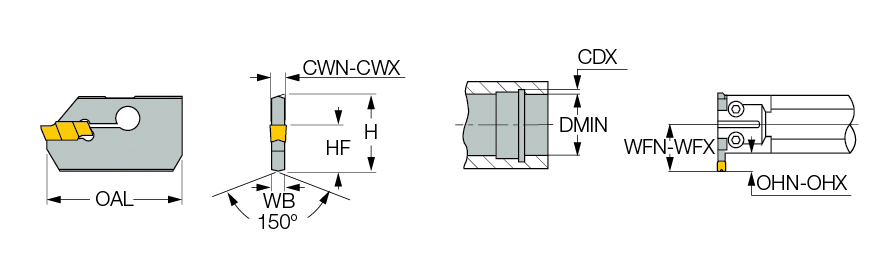

| Remarks | WFN-WFX and OHN-OHX are the blade's extension range Grooving depth (CDX) varies in conformance with blade's overhang (OHN-OHX) and depends on the bore diameter(D).For grooving capacity, see chart below When using TIPI inserts toolholder seat needs to be modified according to insert profile to ensure clearance |
Shipping Info
Package Length
2.80000
Package Width
1.32000
Package Height
.24000
Package Weight
0.05
