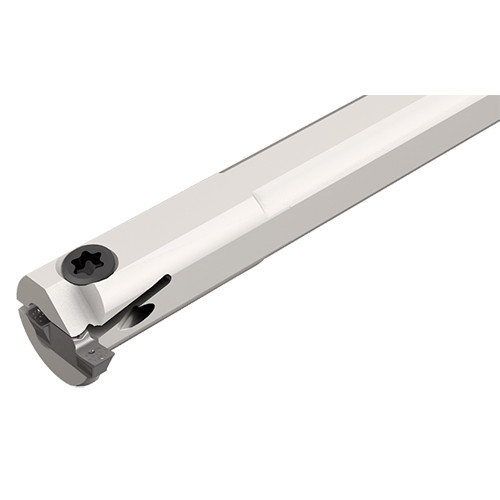

GEHIL 12.7-14-2-T2.6
Grooving Toolholder ; 6″ OAL ; 1/2″ Shank Dia. ; 0.075″ CW Min. ; 0.095″ CW Max. ; 0.102″ Max Depth ; Steel

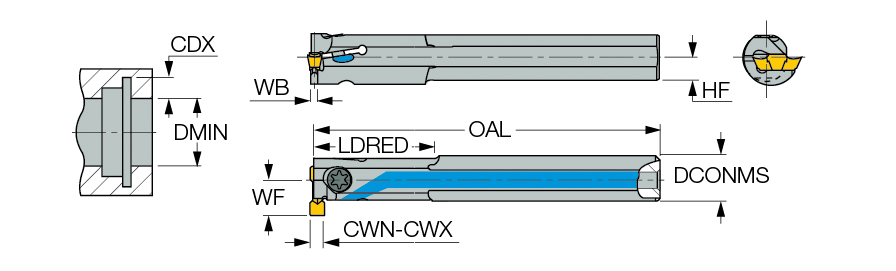

| Cutting Width Minimum (CWN) | 0.075″ | Overall Length (OAL) | 6″ |
| Cutting Width Maximum (CWX) | 0.095″ | Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Cutting Depth Maximum (CDX) | 0.102″ | Coolant Supply Property (CSP) | Coolant Thru |
| Body Width (WB) | 0.063″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | Threading (Int.) | |
| Minimum Bore Diameter (DMIN) | 0.551″ | Body Material | Steel |
| Functional Width (WF) | 0.36″ | Tool Type | Indexable Turn & Groov Tools |
| Head Length (LH) | 1.38″ | Measurement Type | Inch |
Product Features
| Family Description | Internal machining bars with a coolant holes using GEMI and GEPI inserts in widths larger than .075″. | Country of Origin | Israel |
Shipping Info
Package Weight
0.359
