GEHIUL 12U

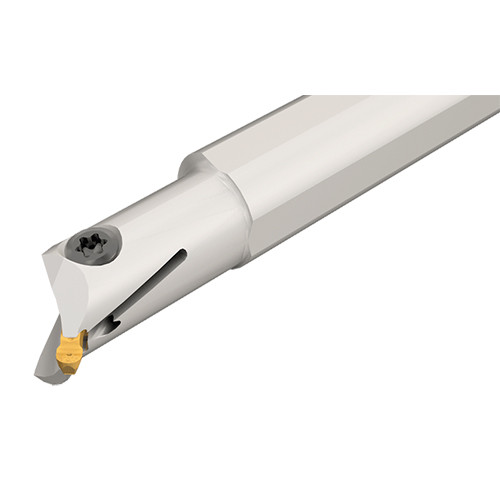

Grooving Toolholder; 12 mm Shank Dia. to 3.2 mm Width × 2 mm Max Depth × 125 mm OAL ; Steel

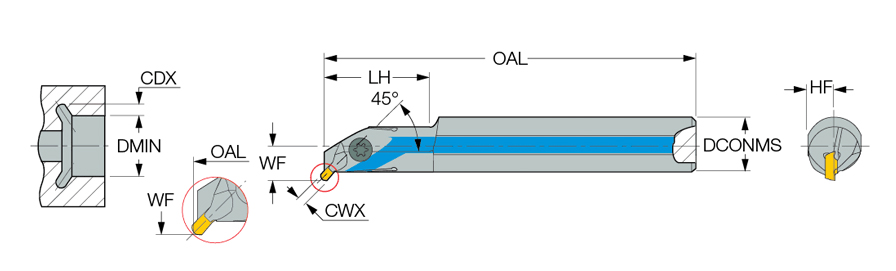

| Cutting Width Maximum (CWX) | 3.2 mm | Connection Diameter Machine Side (DCONMS) | 12 mm |
| Cutting Depth Maximum (CDX) | 2 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Minimum Bore Diameter (DMIN) | 14 mm | Application | | Int. Profiling | Int. Undercut & Turning | |
| Functional Width (WF) | 8.7 mm | Body Material | Steel |
| Head Length (LH) | 20 mm | Tool Type | Indexable Turn & Groov Tools |
| Overall Length (OAL) | 125 mm | Measurement Type | Metric |
Product Features
| Family Description | Boring bars with coolant holes, for undercutting and turning | Country of Origin | Israel |
| Remarks | For profiling use GEPI (full radius) inserts only, for undercutting use GEPI - UN/UR/UL |
Shipping Info
Package Weight
0.280
