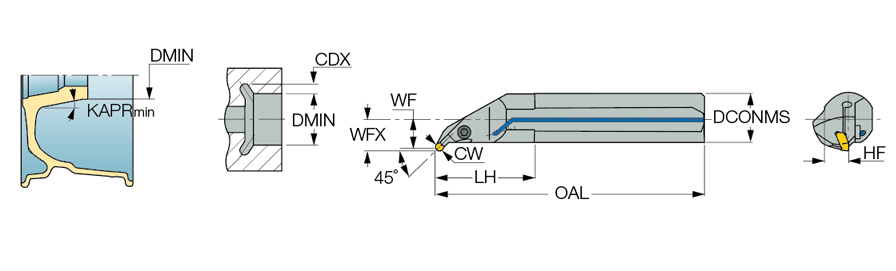

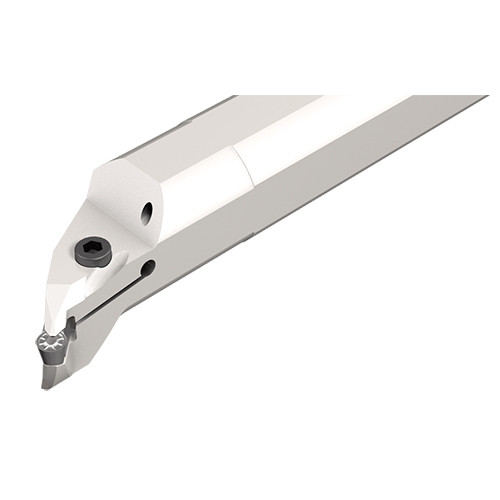

GHIUR 40UC-8
Grooving Toolholder; 40 mm Shank Dia. × 350 mm OAL ; Steel
| Cutting Depth Maximum (CDX) | 0 mm | Connection Diameter Machine Side (DCONMS) | 40 mm |
| Body Width (WB) | 0 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Minimum Bore Diameter (DMIN) | 68 mm | Application | | Int. Machining Aluminum Wheels | Int. Undercut & Turning | |
| Functional Width (WF) | 26 mm | Body Material | Steel |
| Head Length (LH) | 79 mm | Tool Type | Indexable Turn & Groov Tools |
| Overall Length (OAL) | 350 mm | Measurement Type | Metric |
Product Features
| Family Description | 45° undercutting bars for internal turning aluminum wheels. | Country of Origin | Israel |
Shipping Info
Package Weight
6.272
