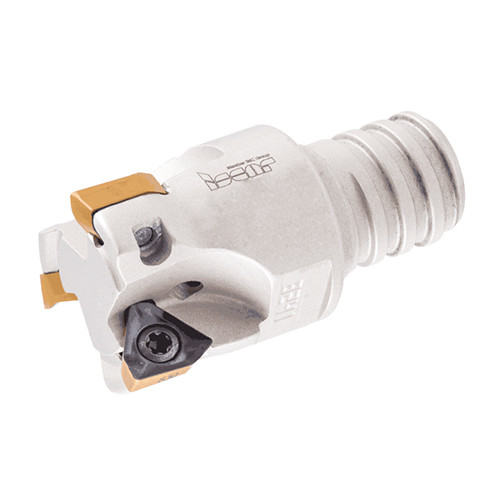

HM390 ETP-D1.0-3-MMT15-10
Indexable End Mill; 1″ Dia. × 0.315″ LOC × 0.96″ Shank Dia. × 1.77″ OAL ; 3 FL ; 90 Degrees

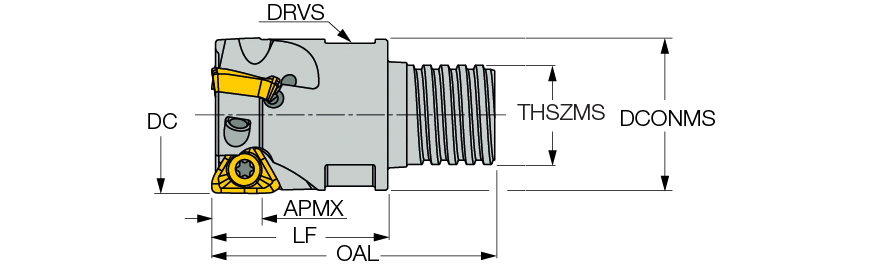

| Cutting Diameter (DC/DCX) | 1″ | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 1″ | Connection Thread Nominal Size Machine Side (THSZMS) | T15 |
| Cutting Item Count (CICT) | 3 | Drive Size (DRVS) | 0.787″ |
| Depth of Cut Maximum (APMX) | 0.315″ | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 1.77″ | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 1 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.96″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | HM390 TPKT 100304PDR | Body Material | Steel |
| Weight of Item (WT) | 0.21 Lbs | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 1.1″ |
Product Features
| Family Description | 90° endmills with a MULTI-MASTER threaded adaptation carrying HM390 TPKT 1003... triangular inserts with helical cutting edges. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info |
Shipping Info
Package Weight
0.207
