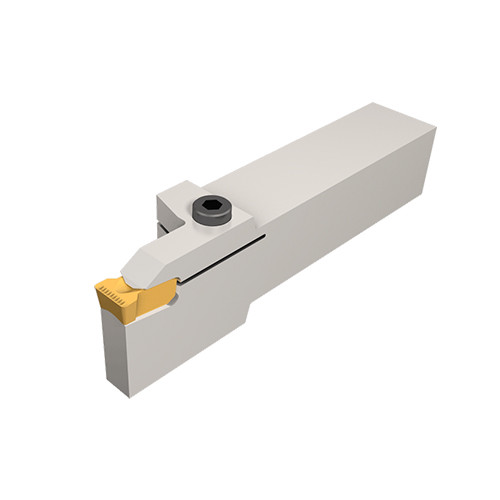

GHDR 4040-14T38
Grooving Toolholder ; 170 mm OAL ; 40 mm Shank Height ; 40 mm Shank Width ; 13 mm CW Min. ; 17.4 mm CW Max. ; 38 mm Max Depth ; Steel

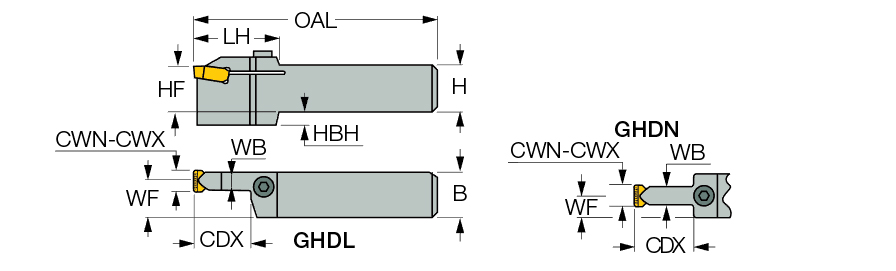

| Cutting Width Minimum (CWN) | 13 mm | Head Length (LH) | 59 mm |
| Cutting Width Maximum (CWX) | 17.4 mm | Overall Length (OAL) | 170 mm |
| Cutting Depth Maximum (CDX) | 38 mm | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 40 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Pulley V Grooving | |
| Shank Width (B) | 40 mm | Body Material | Steel |
| Body Width (WB) | 12 mm | Tool Type | Wide Profiling Tools |
| Functional Width (WF) | 34 mm | Measurement Type | Metric |
Product Features
| Family Description | External tools for wide (12-17.4 mm) grooving inserts. | Country of Origin | Israel |

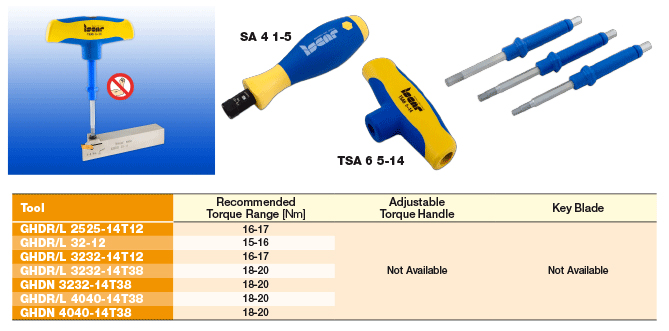

| Remarks | To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
4.140
