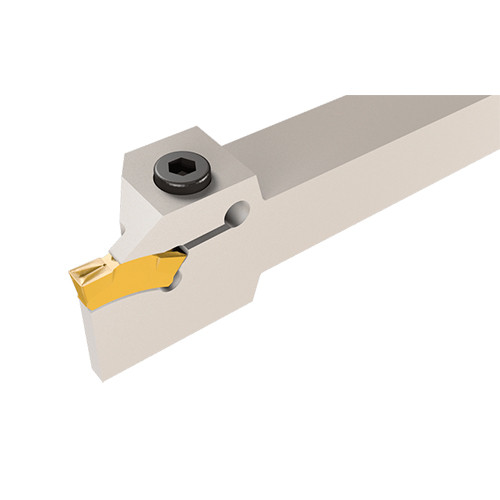

TGDL 3232-6M
Grooving Toolholder ; 150 mm OAL ; 32 mm Shank Height ; 32 mm Shank Width ; 6 mm CW Min. ; 6.35 mm CW Max. ; 22 mm Max Depth ; Steel

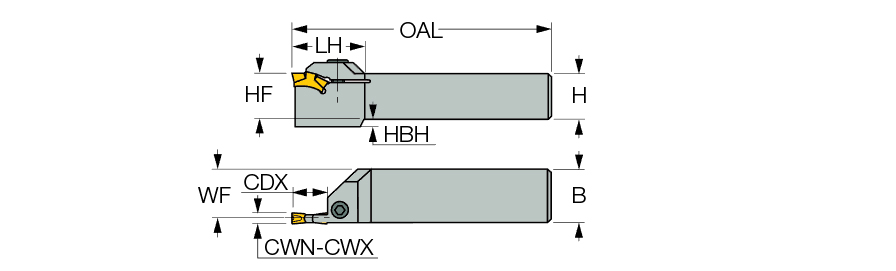

| Cutting Width Minimum (CWN) | 6 mm | Head Length (LH) | 43 mm |
| Cutting Width Maximum (CWX) | 6.35 mm | Overall Length (OAL) | 150 mm |
| Cutting Depth Maximum (CDX) | 22 mm | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 32 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | |
| Shank Width (B) | 32 mm | Body Material | Steel |
| Body Width (WB) | 5.1 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 29.5 mm | Measurement Type | Metric |
Product Features
| Family Description | Holders for TOP-GRIP utility grooving and turning inserts. | Country of Origin | Israel |

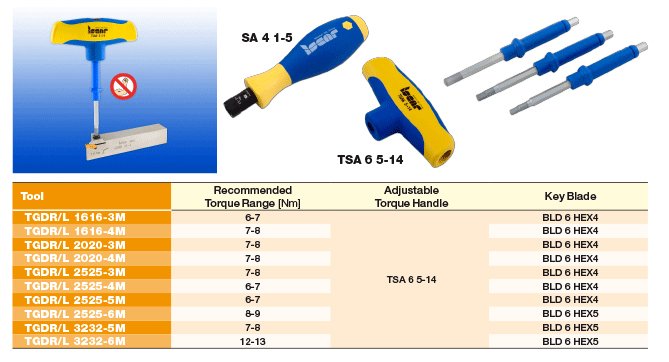

| Remarks | To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
2.361
Related Documentation
Tools for multi-directional machining with support under the arc-shaped insert, for turning, grooving and parting with maximum stability.
