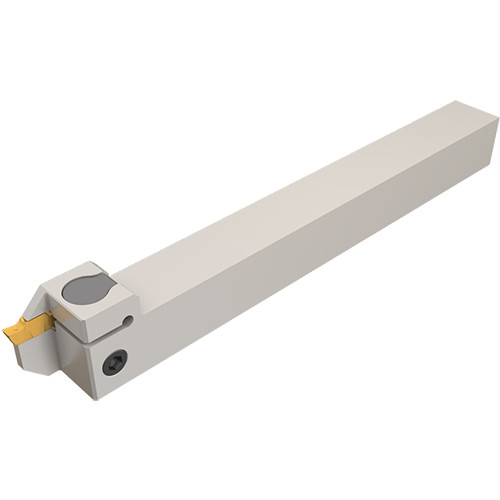

GEHSL 12-2-SL
Grooving Toolholder ; 120 mm OAL ; 12 mm Shank Height ; 12 mm Shank Width ; 2.2 mm CW Min. ; 3.2 mm CW Max. ; 6.8 mm Max Depth ; Steel

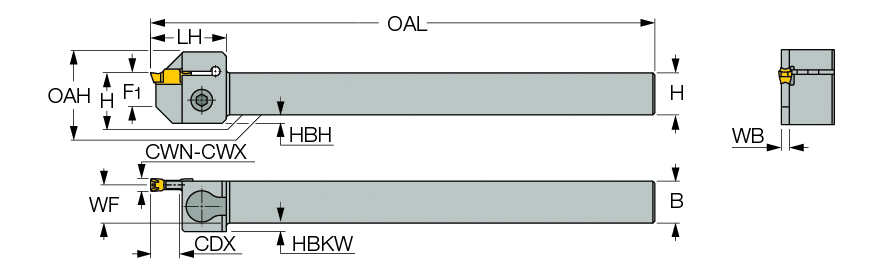

| Cutting Width Minimum (CWN) | 2.2 mm | Head Length (LH) | 18 mm |
| Cutting Width Maximum (CWX) | 3.2 mm | Overall Length (OAL) | 120 mm |
| Cutting Depth Maximum (CDX) | 6.8 mm | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 12 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Threading (Ext.) Groove Turn T | |
| Shank Width (B) | 12 mm | Body Material | Steel |
| Body Width (WB) | 1.8 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 11.1 mm | Measurement Type | Metric |
Product Features

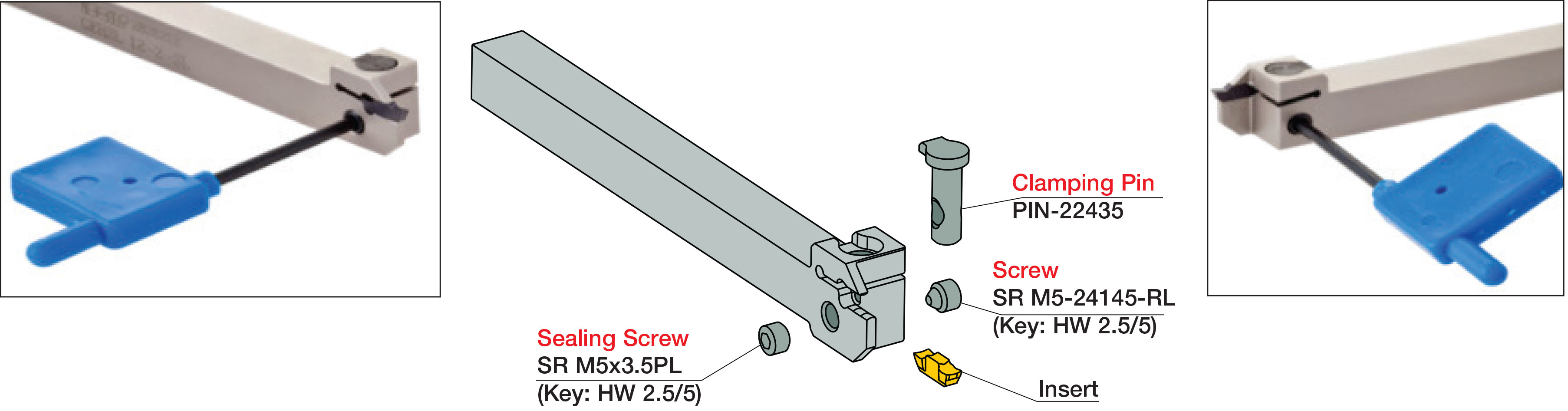

| Family Description | External groove-turn tools with a user friendly side clamping mechanism, for Swiss-type and automatic machines. | Country of Origin | Israel |
Shipping Info
Package Weight
0.366
