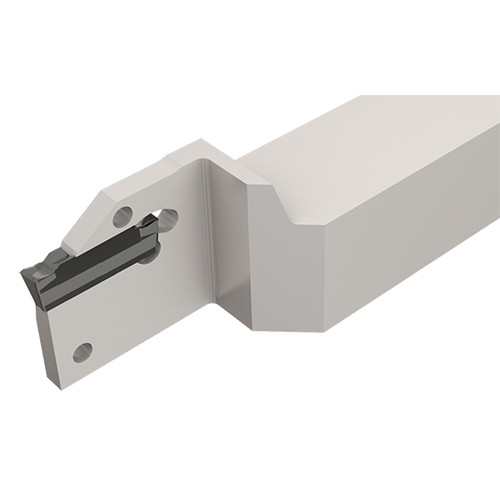

DGTL 2525-4
Grooving Toolholder ; 150 mm OAL ; 25 mm Shank Height ; 25 mm Shank Width ; 4 mm CW Min. ; 4.76 mm CW Max. ; Steel
| Cutting Width Minimum (CWN) | 4 mm | Overall Length (OAL) | 150 mm |
| Cutting Width Maximum (CWX) | 4.76 mm | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 25 mm | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 25 mm | Body Material | Steel |
| Body Width (WB) | 3.4 mm | Tool Type | Parting & Grooving Tools |
| Head Length (LH) | 31 mm | Measurement Type | Metric |
Product Features
| Family Description | Integral shank parting and grooving tools | Country of Origin | Israel |
| Remarks | Insert limit is Tmax=18 mm. If deeper penetration is required, the insert should be modified into single-ended by the user DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified-click on More Info |
Shipping Info
Package Weight
1.396
Related Documentation
For DG.-1... inserts, modify holder pocket according to depth capacity table.
