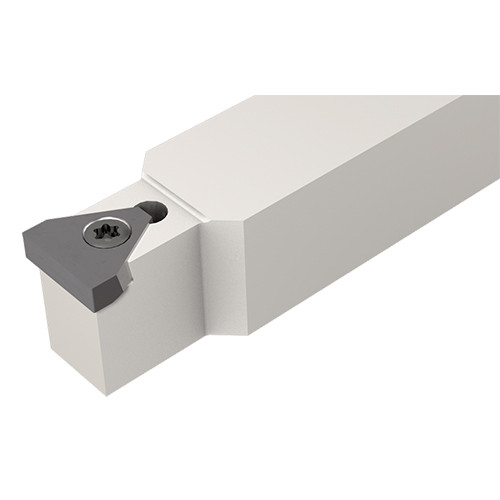

SXCNN 2020 P20-05
Grooving Toolholder; 20 mm × 20 mm Shank Size × 24 mm Max Depth × 170 mm OAL ; Steel

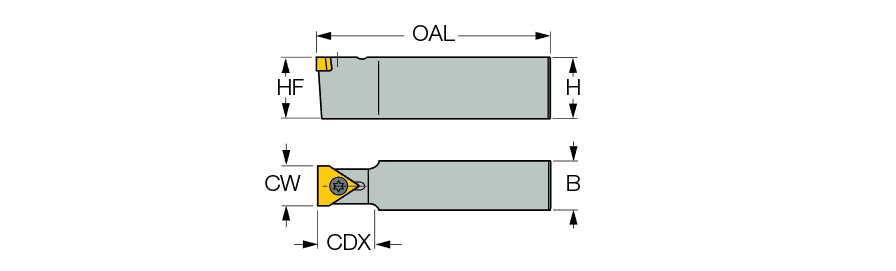

| Cutting Depth Maximum (CDX) | 24 mm | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 20 mm | Application | | Ext. Grooving | |
| Shank Width (B) | 20 mm | Body Material | Steel |
| Body Width (WB) | 18.4 mm | Tool Type | Wide Profiling Tools |
| Overall Length (OAL) | 170 mm | Measurement Type | Metric |
Product Features
| Family Description | V-Lock external toolholders for specially tailored wide profile grooving inserts | Country of Origin | Israel |
| Remarks | Toolholder seat needs to be modified according to insert profile to ensure clearance |
Shipping Info
Package Weight
1.102
