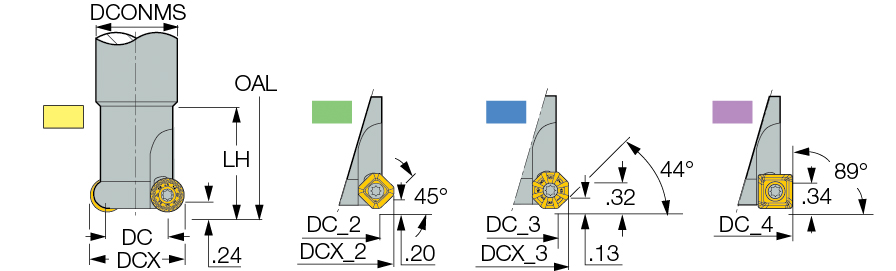

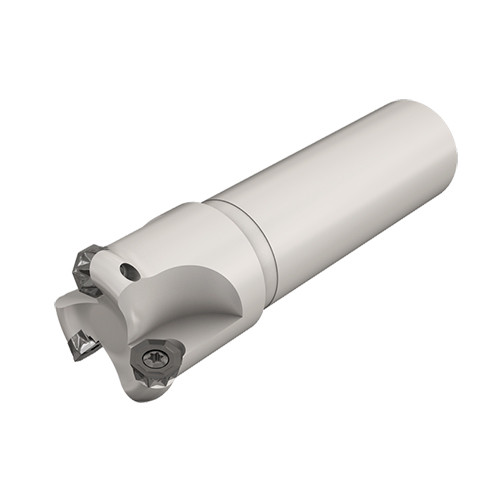

ERCM D1.50-C1.25CP12
| Cutting Item Count (CICT) | 3 | Weight of Item (WT) | 2.63 Lbs |
| Depth of Cut Maximum (APMX) | 0.24″ | Head Length (LH) | 1.58″ |
| Overall Length (OAL) | 8″ | Tool Type | Chamfering endmills |
| Shank Type | Round | Coolant Supply Property (CSP) | External |
| Ramping Angle Maximum (RMPX) | 6 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Profiling | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Master Insert Identification (MIID) | R90MT | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | CHAMMILL, Multifunctional coarse pitch endmills. Can carry four different insert shapes. | Country of Origin | Israel |
| Remarks | For adaptation click on More Info. The displayed data refers to R90MT inserts, for other combinations see More Info. |
Shipping Info
Package Weight
2.974
