GHMUL 25
Grooving Toolholder; 25 mm × 25 mm Shank Size to 6.4 mm Width × 127 mm OAL ; Steel

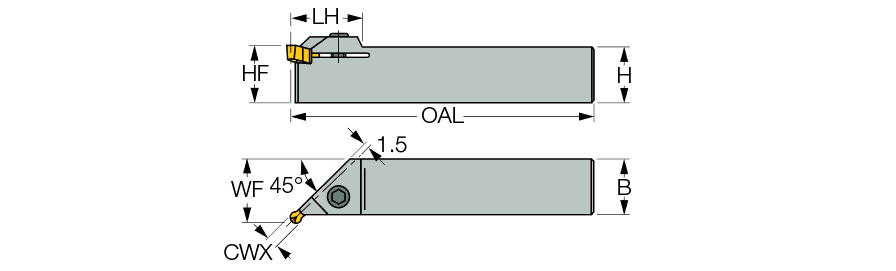

| Cutting Width Maximum (CWX) | 6.4 mm | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 25 mm | Application | | Ext. Undercut | |
| Shank Width (B) | 25 mm | Body Material | Steel |
| Functional Width (WF) | 28 mm | Tool Type | Turn-Groove Tools |
| Head Length (LH) | 25 mm | Measurement Type | Metric |
| Overall Length (OAL) | 137 mm |
Product Features

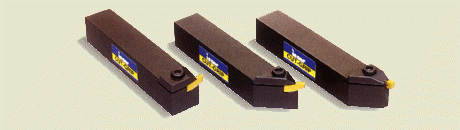

| Family Description | CUT-GRIP external holders for 45° undercutting. | Country of Origin | Israel |
| Remarks | For D>100 mm, GIP/GIF inserts can be used (clearance types UN, D or G are not required). To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
1.437
