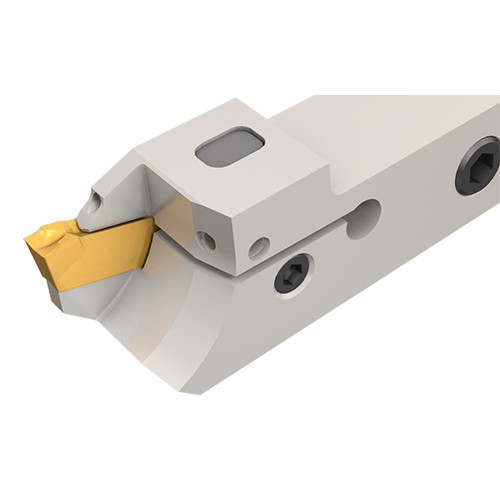

GHSL 12-3-JHP-SL
Grooving Toolholder ; 100 mm OAL ; 12 mm Shank Height ; 12 mm Shank Width ; 2.8 mm CW Min. ; 4 mm CW Max. ; Steel

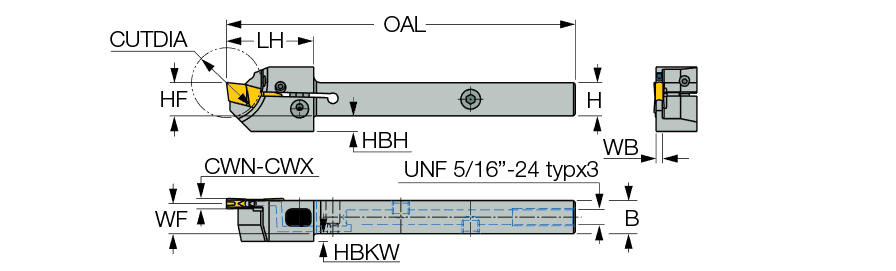

| Cutting Width Minimum (CWN) | 2.8 mm | Overall Length (OAL) | 100 mm |
| Cutting Width Maximum (CWX) | 4 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Height (H) | 12 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Threading (Ext.) Groove Turn T | |
| Shank Width (B) | 12 mm | Body Material | Steel |
| Body Width (WB) | 2.4 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 10.8 mm | Measurement Type | Metric |
| Head Length (LH) | 25 mm |
Product Features

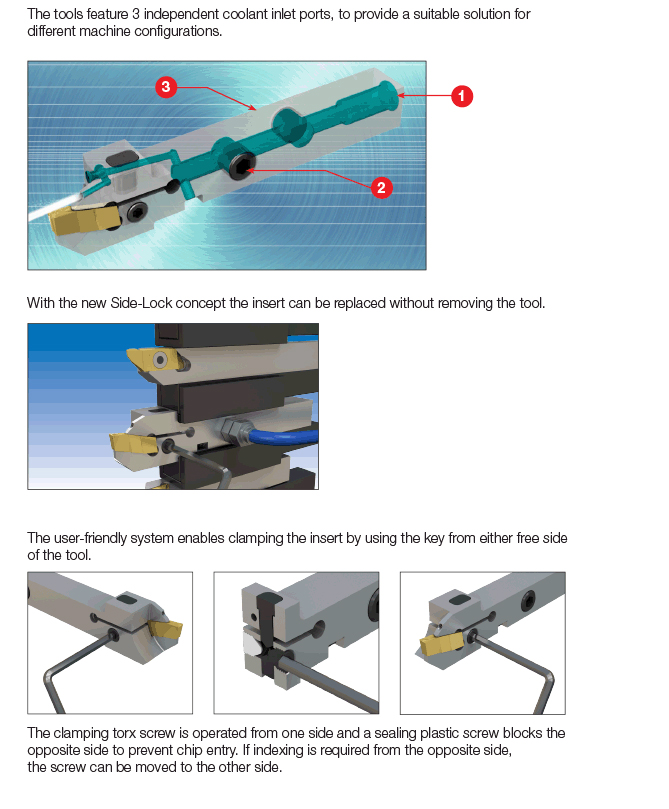

| Family Description | Grooving and turning tools with side lock mechanism and channels for high-pressure coolant. The tools were designed for Swiss-type and automatic machines. | Country of Origin | Israel |
| Remarks | When using GIVR/L inserts, tool holder's seat needs to be modified For more details, click on More Info |
Shipping Info
Package Weight
0.342
