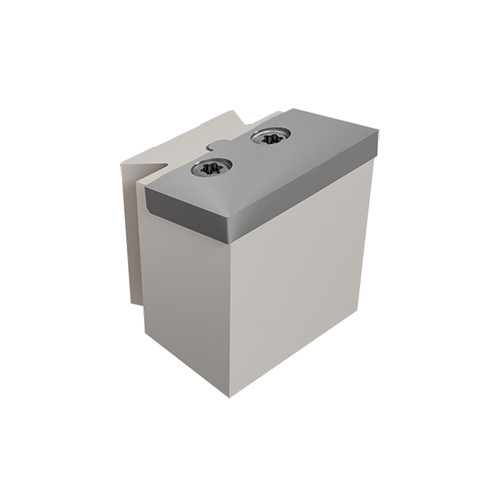

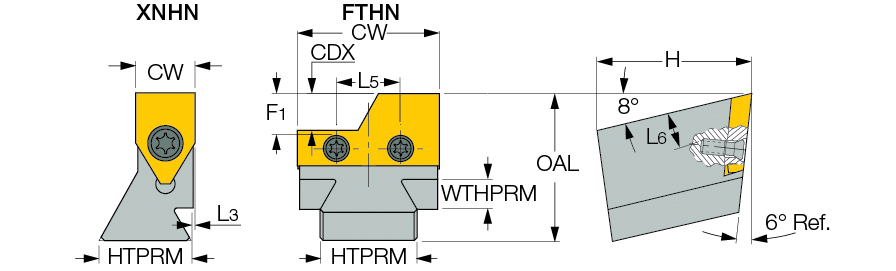

DT28A FTHN-35
Grooving Toolholder; x 28 mm Shank Size × 10 mm Max Depth × 40 mm OAL ; Steel
| Cutting Depth Maximum (CDX) | 10 mm | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 40 mm | Application | | Ext. Grooving | |
| Shank Width (B) | 28 mm | Body Material | Steel |
| Functional Width (WF) | 32 mm | Tool Type | Wide Profiling Tools |
| Overall Length (OAL) | 32 mm | Measurement Type | Metric |
Product Features
| Family Description | Semi-standard dovetail type holders, for XNUW and FTB wide profiling inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.650
