SXCIR 25-24

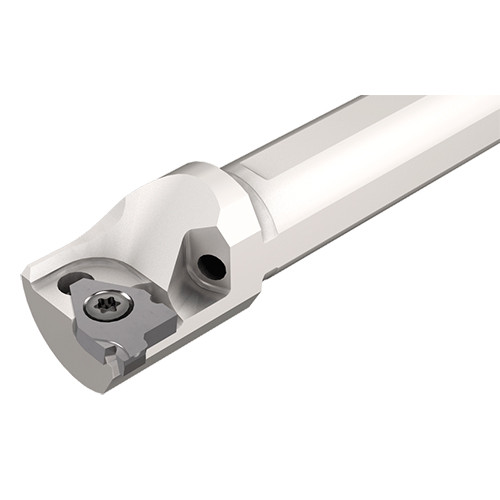

Grooving Toolholder; 25 mm Shank Dia. × 4 mm Max Depth × 170 mm OAL ; Steel

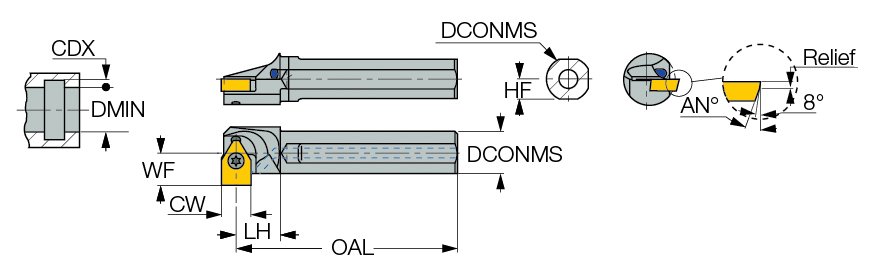

| Cutting Depth Maximum (CDX) | 4 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Minimum Bore Diameter (DMIN) | 40 mm | Application | | Int. Grooving | Int. Grooving (side limit) | |
| Functional Width (WF) | 17.5 mm | Body Material | Steel |
| Head Length (LH) | 30 mm | Tool Type | Wide Profiling Tools |
| Overall Length (OAL) | 170 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
Product Features
| Family Description | Internal toolholders for specially tailored profile insets. | Country of Origin | Israel |
Shipping Info
Package Weight
1.380
