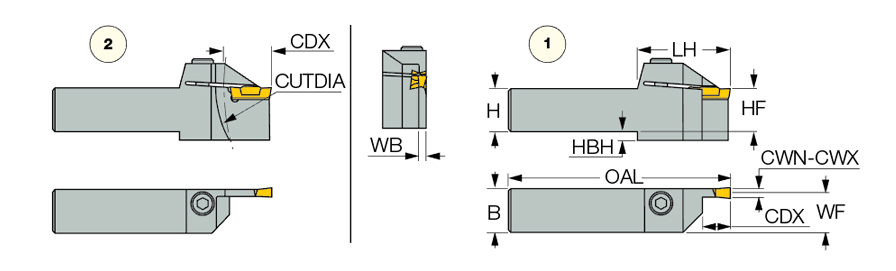

HELIL 2020-4T25
Grooving Toolholder ; 140 mm OAL ; 20 mm Shank Height ; 20 mm Shank Width ; 4 mm CW Min. ; 4.76 mm CW Max. ; Steel
| Cutting Width Minimum (CWN) | 4 mm | Overall Length (OAL) | 140 mm |
| Cutting Width Maximum (CWX) | 4.76 mm | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 20 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Shank Width (B) | 20 mm | Body Material | Steel |
| Body Width (WB) | 3.2 mm | Tool Type | Face Turning & grooving Tools |
| Functional Width (WF) | 18.4 mm | Measurement Type | Metric |
| Head Length (LH) | 42 mm |
Product Features
| Family Description | HELI-GRIP external holders for turning, grooving & parting | Country of Origin | Israel |

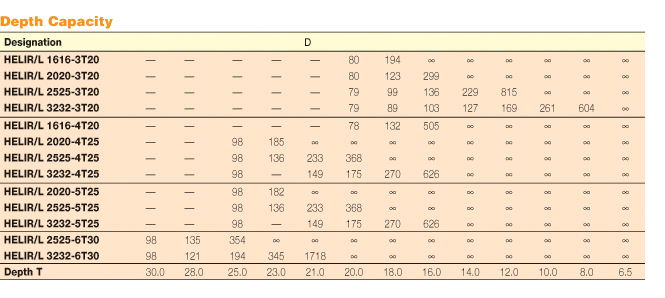

| Remarks | For tool type as shown in Fig.2, CDX for grooving is limited by the part diameter Dmax, for grooving depth capacity, click on More Info To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
0.979
