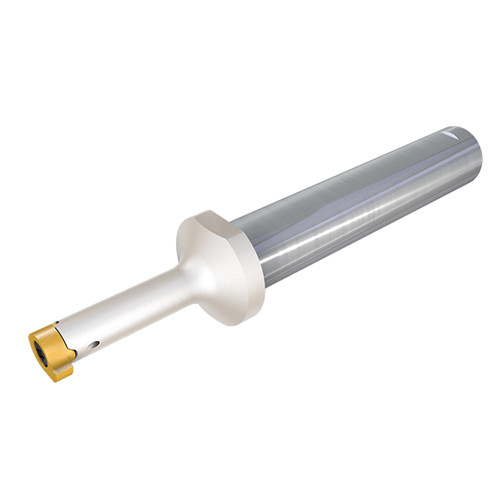

MG 12-11C25
Grooving Toolholder ; 92.5 mm OAL ; 11 mm Shank Height ; 12 mm Shank Dia. ; 0.5 mm CW Min. ; 3 mm CW Max. ; 2.3 mm Max Depth ; Steel

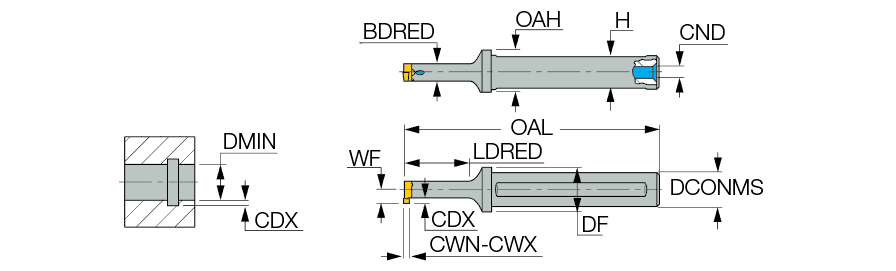

| Cutting Width Minimum (CWN) | 0.5 mm | Connection Diameter Machine Side (DCONMS) | 12 mm |
| Cutting Width Maximum (CWX) | 3 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 2.3 mm | Application | | Int. Back Boring and Profiling | Int. Boring and Profiling | Int. Groove & Turn | Int. Grooving | Threading (Int.) | |
| Shank Height (H) | 11 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 11 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 6.7 mm | Measurement Type | Metric |
| Overall Length (OAL) | 92.5 mm |
Product Features
| Family Description | Internal grooving turning and threading bars, Dmin 8 mm. CHAMGROOVE - part of the CHAMELEON multifunction system. | Country of Origin | Israel |
| Remarks | The same tool applies on right and left machining |
Shipping Info
Package Length
7.00000
Package Width
5.00000
Package Height
5.00000
Package Weight
0.182
