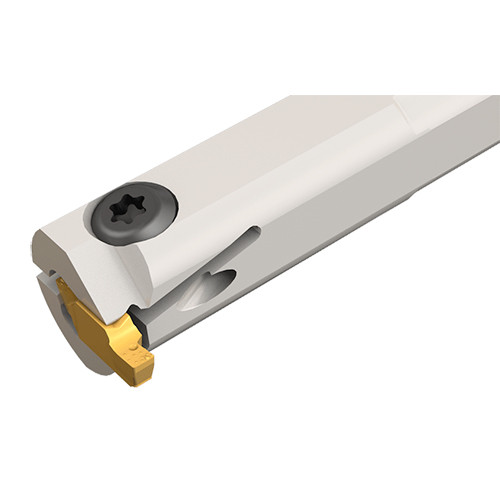

GEHIMR 12-14
Grooving Toolholder ; 150 mm OAL ; 12 mm Shank Dia. ; 0.8 mm CW Min. ; 1.9 mm CW Max. ; 2.5 mm Max Depth ; Steel

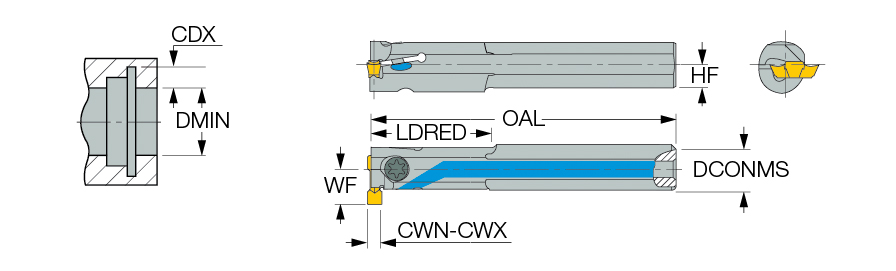

| Cutting Width Minimum (CWN) | 0.8 mm | Connection Diameter Machine Side (DCONMS) | 12 mm |
| Cutting Width Maximum (CWX) | 1.9 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 2.5 mm | Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Minimum Bore Diameter (DMIN) | 14 mm | Body Material | Steel |
| Functional Width (WF) | 9 mm | Tool Type | Indexable Turn & Groov Tools |
| Head Length (LH) | 35 mm | Measurement Type | Metric |
| Overall Length (OAL) | 150 mm |
Product Features
| Family Description | Internal machining boring bars with coolant holes, using GEMI and GEPI inserts in smaller than 1.9 mm widths (the insert is not fully supported). | Country of Origin | Israel |
Shipping Info
Package Weight
0.326
