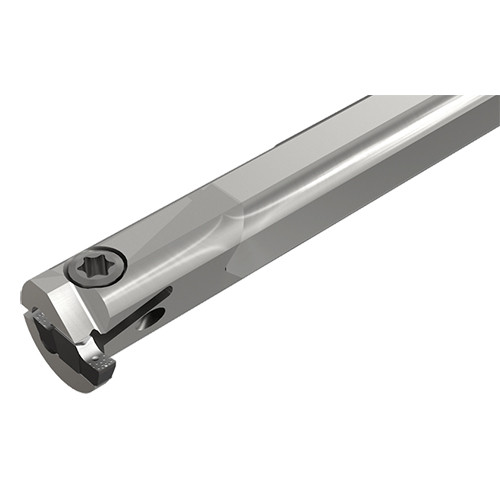

GEHIR 16SC-16-3
Grooving Toolholder ; 160 mm OAL ; 16 mm Shank Dia. ; 2.4 mm CW Min. ; 3.2 mm CW Max. ; 3 mm Max Depth ; Steel

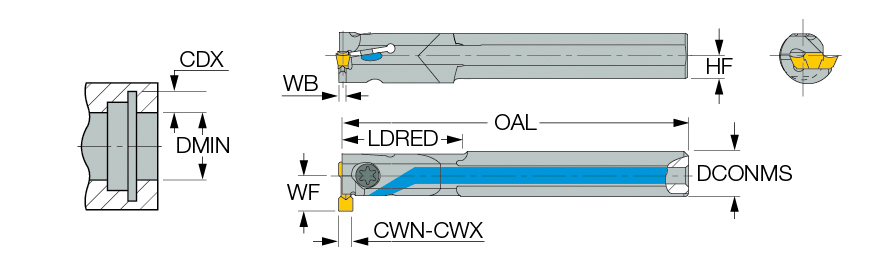

| Cutting Width Minimum (CWN) | 2.4 mm | Overall Length (OAL) | 160 mm |
| Cutting Width Maximum (CWX) | 3.2 mm | Connection Diameter Machine Side (DCONMS) | 16 mm |
| Cutting Depth Maximum (CDX) | 3 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Body Width (WB) | 2 mm | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | Threading (Int.) | |
| Minimum Bore Diameter (DMIN) | 16 mm | Body Material | Steel |
| Functional Width (WF) | 11 mm | Tool Type | Indexable Turn & Groov Tools |
| Head Length (LH) | 70 mm | Measurement Type | Metric |
Product Features
| Family Description | Internal machining carbide bars with a coolant holes using GEMI and GEPI inserts in widths larger than 1.9 mm. | Country of Origin | Israel |
Shipping Info
Package Weight
0.829
