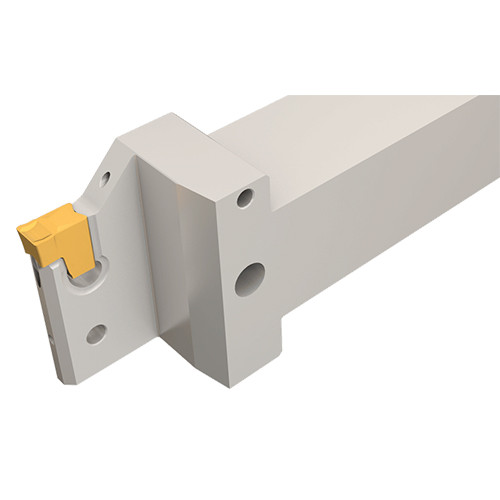

TGBHR 25-8-JHP
Grooving Toolholder ; 150 mm OAL ; 25 mm Shank Height ; 25 mm Shank Width ; 8 mm CW Min. ; 8 mm CW Max. ; 25 mm Max Depth ; Steel

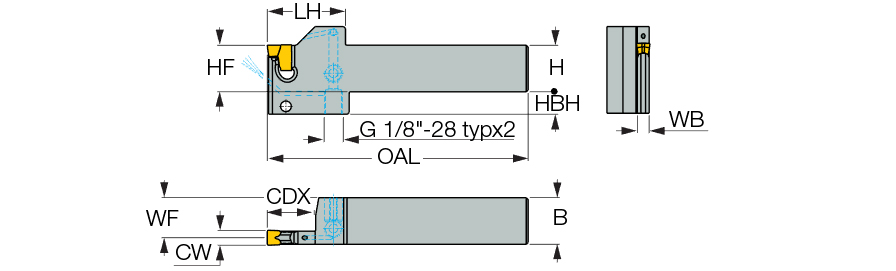

| Cutting Width Minimum (CWN) | 8 mm | Overall Length (OAL) | 150 mm |
| Cutting Width Maximum (CWX) | 8 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 25 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Parting & Grooving Tools |
| Body Width (WB) | 7 mm | Measurement Type | Metric |
| Functional Width (WF) | 21.5 mm | Head Bottom Offset Height (HBH) | 12 mm |
| Head Length (LH) | 42 mm |
Product Features
| Family Description | SUMO-GRIP tools with channels for high-pressure coolant and very rigid clamping. Recommended for grooving, turning and parting at very high feed rates and interrupted cuts. Excellent tool and pocket life. | Country of Origin | Israel |
| Remarks | For user guide, click on More Info |
Shipping Info
Package Weight
1.764
