SXCIR 20-13

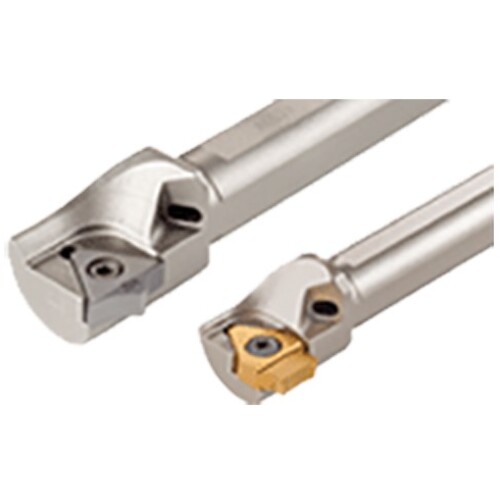

Grooving Toolholder; 20 mm Shank Dia. × 4 mm Max Depth × 150 mm OAL ; Steel
| Cutting Width Minimum (CWN) | 0.118″ | Overall Length (OAL) | 150 mm |
| Cutting Width Maximum (CWX) | 0.126″ | Connection Diameter Machine Side (DCONMS) | 20 mm |
| Cutting Depth Maximum (CDX) | 4 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Height (H) | 1.26″ | Application | | Int. Grooving | Int. Grooving (side limit) | |
| Minimum Bore Diameter (DMIN) | 30 mm | Body Material | Steel |
| Functional Width (WF) | 14.5 mm | Tool Type | Wide Profiling Tools |
| Head Length (LH) | 25 mm | Measurement Type | Metric |
Product Features
| Family Description | Internal toolholders for specially tailored profile insets. | Country of Origin | Israel |
Shipping Info
Package Weight
0.805
