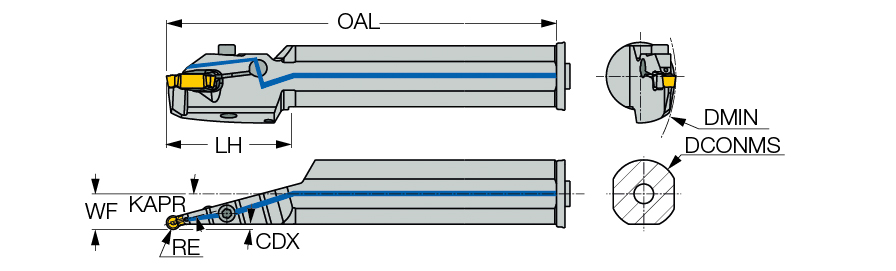

| Cutting Depth Maximum (CDX) | 2.2 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Minimum Bore Diameter (DMIN) | 160 mm | Application | | Int. Machining Aluminum Wheels | |
| Functional Width (WF) | 21 mm | Body Material | Steel |
| Head Length (LH) | 68 mm | Tool Type | Wide Profiling Tools |
| Overall Length (OAL) | 320 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
Product Features
| Family Description | 10° / 15° approach angle bars, for facing and internal profiling of aluminum. | Country of Origin | Israel |

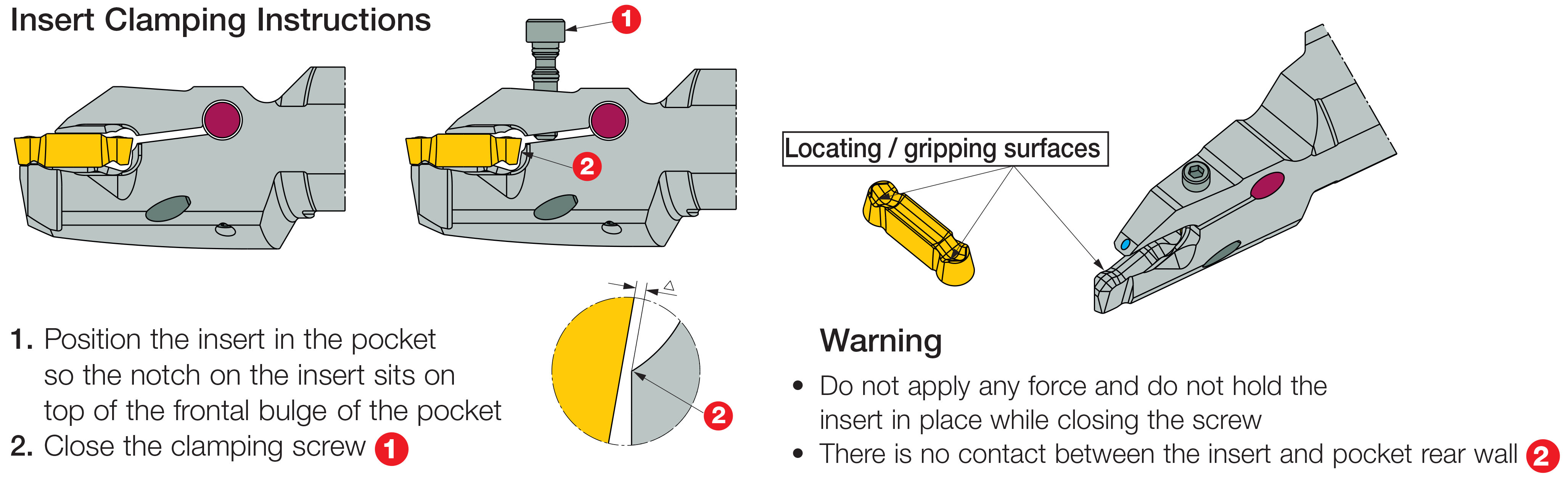

| Remarks | Clamping torque for FSHIUR..-6: 9 Nxm, for FSHDR..-8: 10.5 Nxm |
Shipping Info
Package Weight
5.375
