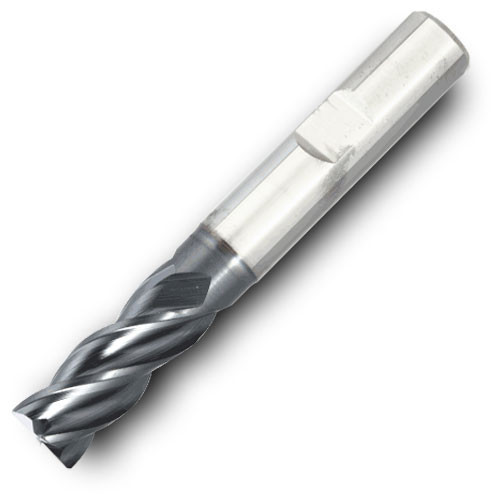

47D-4310R9RQ06 IN2005
SQ End Mill; 0.438″ Dia. × 1″ LOC × 0.438″ Shank Dia. × 4″ OAL ; 4 FL ; TiAlN
| Cutting Diameter (DC) | 0.438″ | Application | | Drill Mill | Drilling | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 0.438″ | Corner Radius (RE) | 0.06″ |
| Depth of Cut Maximum (APMX) | 1″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 4″ | Grade | IN2005 |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.438″ |
| Flute Helix Angle (FHA) | 35-37 Degrees | Measurement Type | Inch |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.060 R |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Variable pitch, variable helix ECO style | Country of Origin | Usa |
